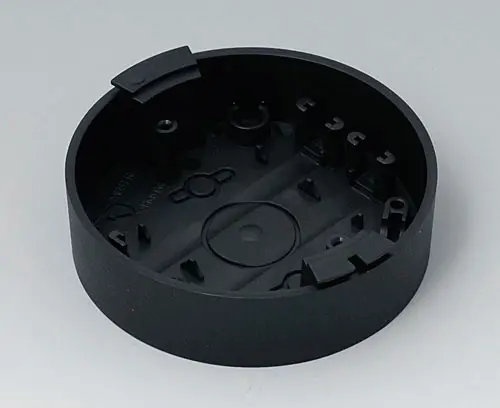

B5011119 Base

B5011119

Base

Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply

1 base

  • Components/Accessories
  • View Customising Options

Design R

Minimum components
1 bottom and top part R110.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of the bottom part and use of battery compartment).

System components to complete

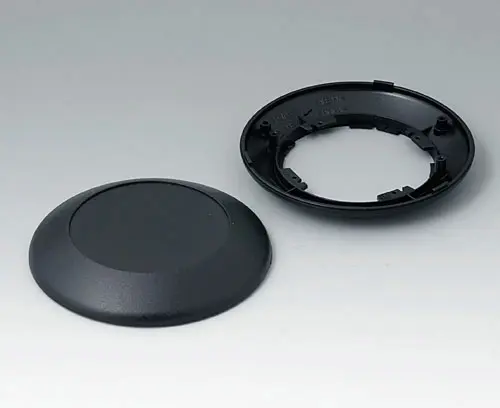

B5010009 Bottom and top part R110F

B5010009

Bottom and top part R110F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Zavřít

B5010009

Bottom and top part R110F
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
⌀110x30mm

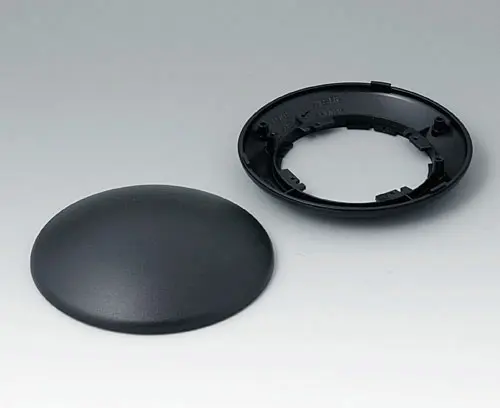

B5010109 Bottom and top part R110 H

B5010109

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Zavřít

B5010109

Bottom and top part R110 H
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
⌀110x38mm

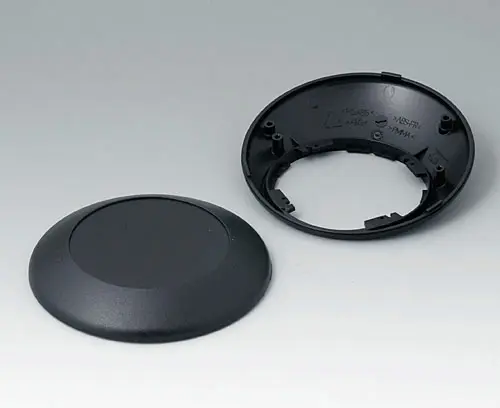

B5010209 Bottom and top part R110 F

B5010209

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Zavřít

B5010209

Bottom and top part R110 F
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
⌀110x38mm

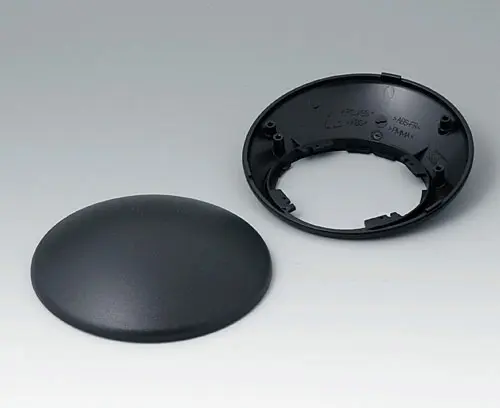

B5010309 Bottom and top part R110 H

B5010309

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Zavřít

B5010309

Bottom and top part R110 H
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
⌀110x41mm

Accessory "battery"

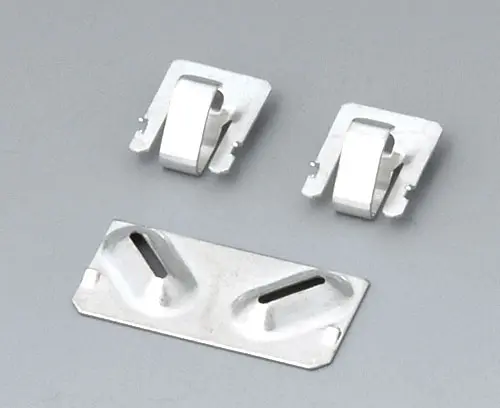

A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Zavřít

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated

Accessory "protection"

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Zavřít

A9199005

Strain relief
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

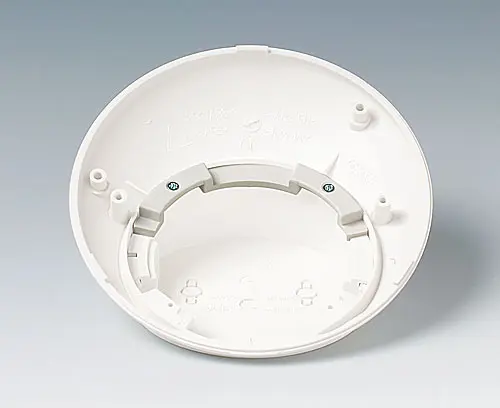

B5111707 Anti-rotation device

B5111707

Anti-rotation device To prevent the base from being removed.

Supply Anti-rotation device, incl. screws

Zavřít

B5111707

Anti-rotation device
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002

Accessory "wall/holder"

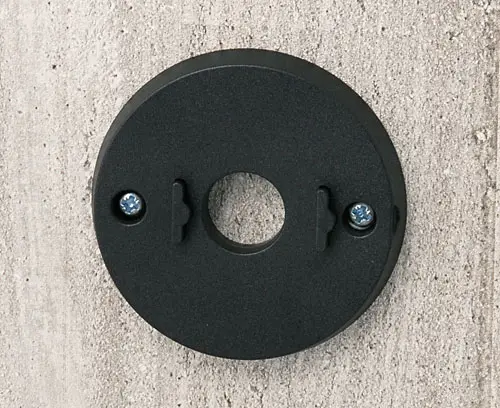

B5111309 Wall mounting set

B5111309

Wall mounting set Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screws

Zavřít

B5111309

Wall mounting set
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Zavřít

B5111201

Set of screws
Produkt byl přidán do Vašeho košíku.

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9207150

Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent

Design S

Design O

Design E

Customising options for B5011119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Kupní data
Barva
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
20 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
