Minimum components
1 bottom and top part R110.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of the bottom part and use of battery compartment).
System components to complete
B5010007
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 F, assembly kit
Zavřít
Bottom and top part R110 F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x30mm
B5010107
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 H, assembly kit
Zavřít
Bottom and top part R110 H
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010207
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 F, assembly kit
Zavřít
Bottom and top part R110 F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010307
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 H, assembly kit
Zavřít
Bottom and top part R110 H
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x41mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Zavřít
Set of battery clips, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Zavřít
Battery contact, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
B5111107

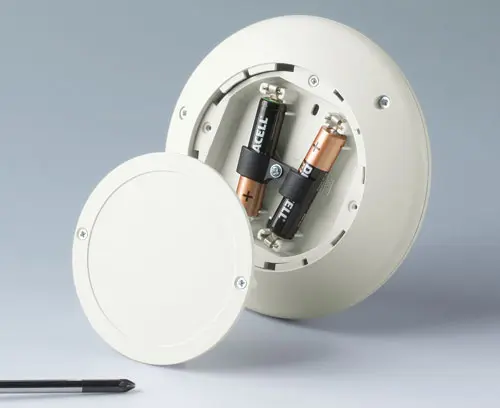

Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Zavřít
Battery compartment, 2 x AAA
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Zavřít
Wall mounting set
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Zavřít
Set of screws
Produkt byl přidán do Vašeho košíku.
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Zavřít
Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent
Minimum components
1 bottom and top part S110.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of the bottom part and use of battery compartment).
System components to complete
B5012207
Bottom and top part S110F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclinded"
Supply
1 top and bottom part S110 F, assembly kit
Zavřít
Bottom and top part S110F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
110x110x38mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Zavřít
Set of battery clips, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Zavřít
Battery contact, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Zavřít
Battery compartment, 2 x AAA
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Zavřít
Wall mounting set
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Zavřít
Set of screws
Produkt byl přidán do Vašeho košíku.
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Zavřít
Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent
Minimum components
1 bottom and top part O160.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of bottom part and use of battery compartment).
System components to complete
B5015007
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 F, assembly kit
Zavřít
Bottom and top part O160 F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
160x110x30mm
B5015107
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 H, assembly kit
Zavřít
Bottom and top part O160 H
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015207
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 F, assembly kit
Zavřít
Bottom and top part O160 F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015307
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 H, assembly kit
Zavřít
Bottom and top part O160 H
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
160x110x41mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Zavřít
Set of battery clips, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Zavřít
Battery contact, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Zavřít
Battery compartment, 2 x AAA
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Zavřít
Wall mounting set
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Zavřít
Set of screws
Produkt byl přidán do Vašeho košíku.
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Zavřít
Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent
Minimum components
1 bottom and top part E160.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of bottom part and use of battery compartment).
System components to complete
B5017207
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part E160 F, assembly kit
Zavřít
Bottom and top part E160 F
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
160x110x38mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Zavřít
Set of battery clips, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Zavřít
Battery contact, 2 x AAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Zavřít
Battery compartment, 2 x AAA
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Zavřít
Wall mounting set
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Zavřít
Set of screws
Produkt byl přidán do Vašeho košíku.
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Zavřít
Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent
Customising options for B5011857
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
