B6123222 Rear panel
Posunout

B6123222

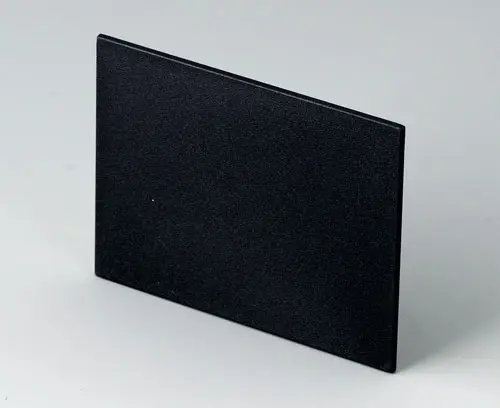

Rear panel

Rear panel for DIN-MODULAR CASE 72 x 72.

Supply

1 rear panel

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B6123222

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options

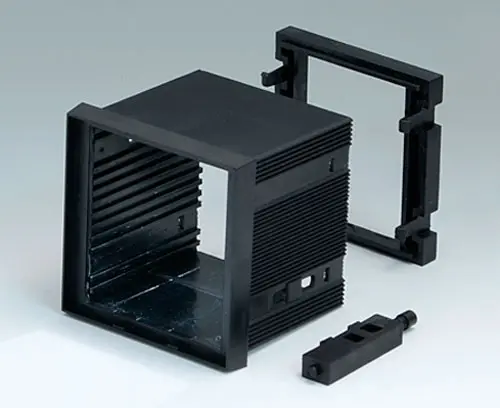

B6023011 DIN-MODULAR CASE TYPE A

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zavřít

B6023011

DIN-MODULAR CASE TYPE A
Produkt byl přidán do Vašeho košíku.
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm

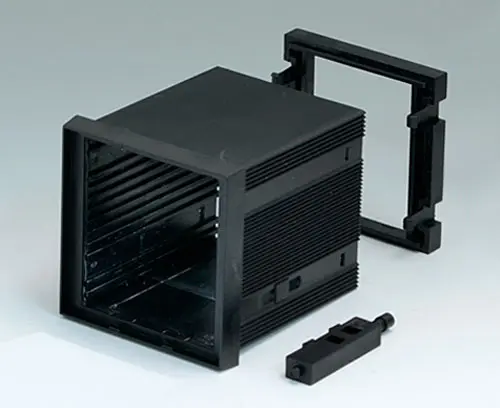

B6023021 DIN-MODULAR CASE TYPE A

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zavřít

B6023021

DIN-MODULAR CASE TYPE A
Produkt byl přidán do Vašeho košíku.
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm

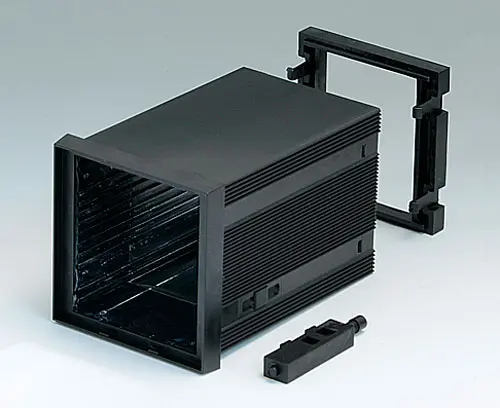

B6023031 DIN-MODULAR CASE TYPE A

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zavřít

B6023031

DIN-MODULAR CASE TYPE A
Produkt byl přidán do Vašeho košíku.
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm

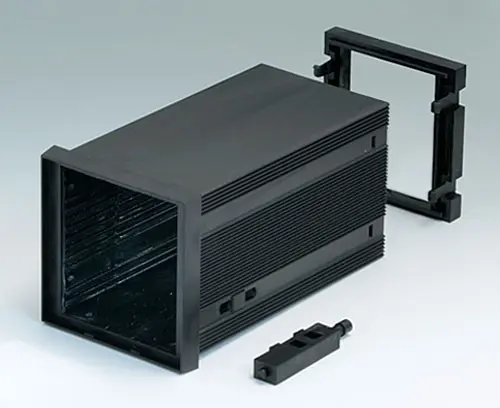

B6023061 DIN-MODULAR CASE TYPE A

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zavřít

B6023061

DIN-MODULAR CASE TYPE A
Produkt byl přidán do Vašeho košíku.
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Customising options for B6123222

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Kupní data
Materiál
PPO (UL 94 V-0)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Width
63,8 mm
Height
49,2 mm
Thickness
1,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
