A9074409 DATEC-MOBIL-BOX M, Vers. IV
Posunout

A9074409

DATEC-MOBIL-BOX M, Vers. IV

Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version

Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply

Case-top and base, battery compartment lid, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9074409

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zavřít

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Zavřít

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Zavřít

A9174002

Battery compartment, 2 x 9 V
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Zavřít

A9174003

Battery compartment, 1 x 9 V
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Zavřít

A9174006

Set of battery clips, 1 x 9 V
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Zavřít

A9345217

Set of battery compartment, 4 x AA
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class, of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

Zavřít

A9174001

Sealing kit M
Produkt byl přidán do Vašeho košíku.

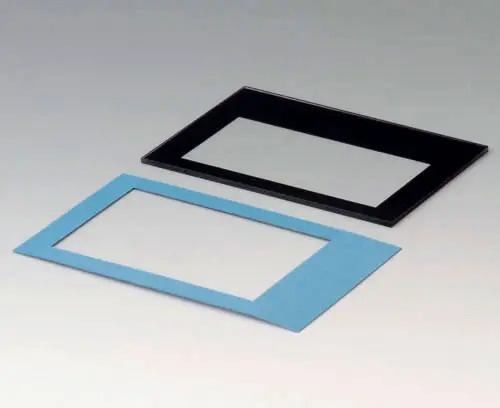

A9174409 Display window M, border black

A9174409

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Zavřít

A9174409

Display window M, border black
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent

Accessory "wall/holder"

A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Zavřít

A9226229

Wall suspension element
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zavřít

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produkt byl přidán do Vašeho košíku.
Stainless steel

Accessory

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250909

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

Customising options for A9074409

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Třída produktu
IP 65 opt.
Necessary accessories: sealing kit, display window (set with adhesive foil)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
195 mm
Width
101 mm
Height
44 mm
PCB length, base
165 mm
PCB width, base
90 mm
PCB length, top
184 mm
PCB width, top
90 mm
Display length, base
60 mm
Display width, base
24 mm
Keypad length
167,7 mm
Keypad width
80,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 5 448 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
196 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
