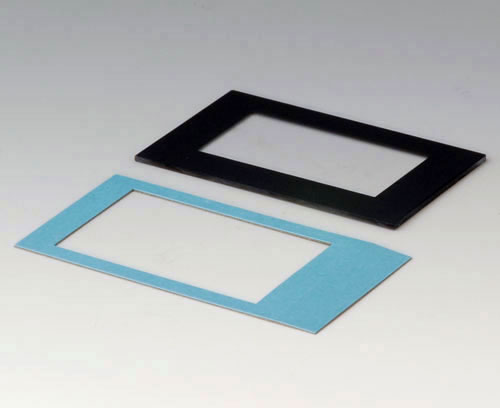

A9173409 Display window S, border black
Posunout

A9173409

Display window S, border black

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply

1 display window, 1 adhesive foil

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9173409

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options
A9073409 DATEC-MOBIL-BOX S, Vers. IV

A9073409

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

Zavřít

A9073409

DATEC-MOBIL-BOX S, Vers. IV
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073419 DATEC-MOBIL-BOX S, Vers. IV

A9073419

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, assembly kit

Zavřít

A9073419

DATEC-MOBIL-BOX S, Vers. IV
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.

Customising options for A9173409

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
Acrylglas
Barva
transparent
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
