B4030621 Cover L, flat
Posunout

B4030621

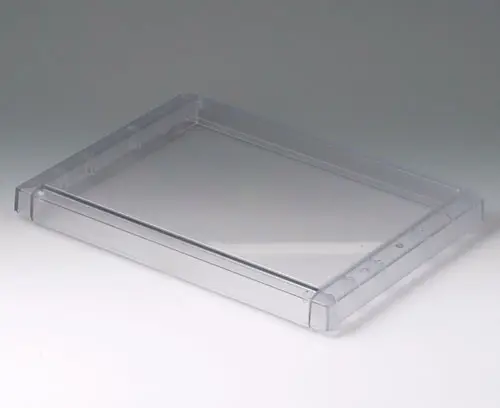

Cover L, flat

Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply

1 cover, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
