B4116147 Wall suspension element M
Posunout

B4116147

Wall suspension element M

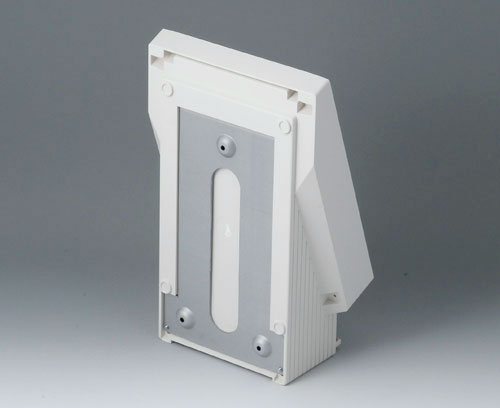

Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply

1 wall suspension element, 2 screws M3

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B4116147

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options
B4016117 DATEC-TERMINAL M, Vers. I

B4016117

DATEC-TERMINAL M, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Zavřít

B4016117

DATEC-TERMINAL M, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016217 DATEC-TERMINAL M, Vers. II

B4016217

DATEC-TERMINAL M, Vers. II Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Zavřít

B4016217

DATEC-TERMINAL M, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016317 DATEC-TERMINAL M, Vers. III

B4016317

DATEC-TERMINAL M, Vers. III Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Zavřít

B4016317

DATEC-TERMINAL M, Vers. III
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.

Customising options for B4116147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
Steel
Barva
galvanized
Standards
RoHS compliant
REACH compliant
Width
214 mm
Height
126 mm
Depth
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 538 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
215 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
