A9095108 DIATEC L
Posunout

A9095108

DIATEC L

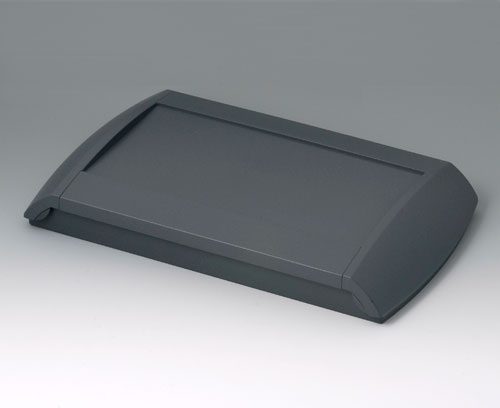

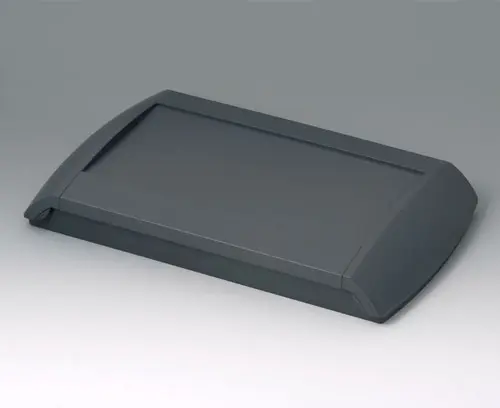

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9095108

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zavřít

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Zavřít

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated

Accessory "protection"

A9193122 Hinged lid S, L

A9193122

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zavřít

A9193122

Hinged lid S, L
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
translucent
A9193128 Hinged lid S, L

A9193128

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zavřít

A9193128

Hinged lid S, L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
A9193132 Hinged lid S, L

A9193132

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zavřít

A9193132

Hinged lid S, L
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Zavřít

A9194007

Slot-in panel
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9212330

Anti-slide feet 12 x 3.5 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for A9095108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Třída produktu
IP 40
Barva
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
330 mm
Height
48 mm
Depth
200 mm
PCB length, base
180 mm
PCB width, base
240 mm
PCB length, top
180 mm
PCB width, top
240 mm
Keypad length
127,6 mm
Keypad width
239,6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 387 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
510 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
