B7005107 ERGO-CASE S, high
Posunout

B7005107

ERGO-CASE S, high

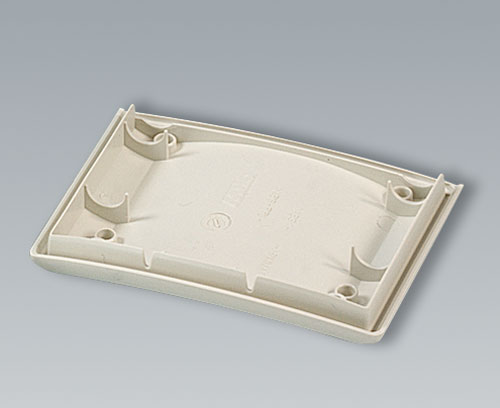

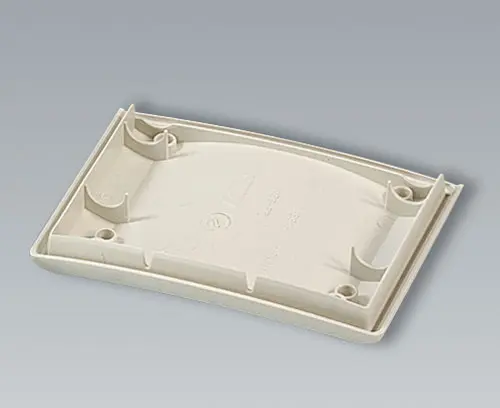

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version

With high top part

Supply

1 top and 1 bottom part, assembly kit
