B7020209 ERGO-CASE L, flat
Posunout

B7020209

ERGO-CASE L, flat

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version

With flat top part

Supply

1 top and 1 bottom part, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B7020209

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "protection"

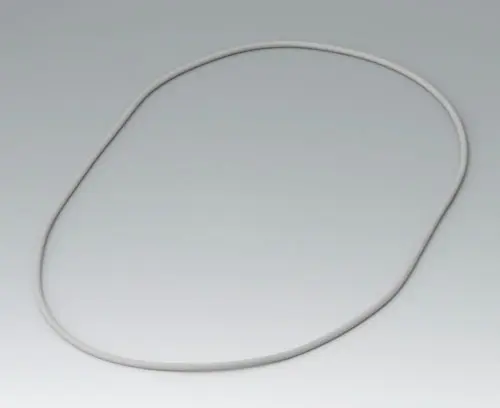

B7120005 Sealing L

B7120005

Sealing L Application: for increasing the protection class, of ERGO-CASE L.

Supply 1 sealing

Zavřít

B7120005

Sealing L
Produkt byl přidán do Vašeho košíku.

Accessory "wall/holder"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zavřít

A9178007

Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Zavřít

B7110028

Fastening elements L / M / S
Produkt byl přidán do Vašeho košíku.
PA 6
volcano
B7120048 Wall suspension elements L

B7120048

Wall suspension elements L Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 assembly kit

Zavřít

B7120048

Wall suspension elements L
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

Accessory "carrying"

B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Zavřít

B7110028

Fastening elements L / M / S
Produkt byl přidán do Vašeho košíku.
PA 6
volcano
B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Zavřít

B7110139

Belt strap
Produkt byl přidán do Vašeho košíku.
black
1200x30mm
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Zavřít

B7110149

Belt strap
Produkt byl přidán do Vašeho košíku.
black
1500x30mm

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zavřít

A9178007

Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zavřít

A9178008

Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated

Customising options for B7020209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Třída produktu
IP 54 opt.
Necessary accessories: sealing
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
200 mm
Height
54 mm
PCB length, top
125 mm
PCB width, top
162 mm
Keypad length
94,1 mm
Keypad width
149,4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 568 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
246 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
