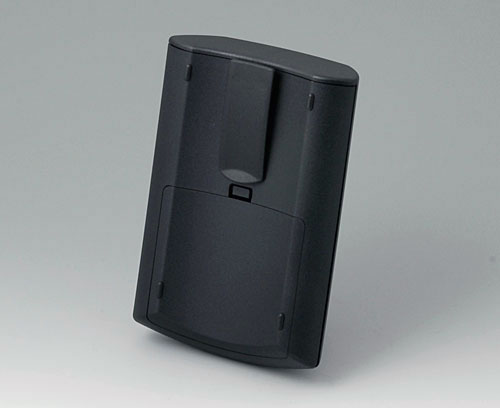

B7110109 Belt / pocket clip
Posunout

B7110109

Belt / pocket clip

Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 clip, assembly kit

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B7110109

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options
B7000109 ERGO-CASE S, flat

B7000109

ERGO-CASE S, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7000109

ERGO-CASE S, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
80x96x32mm
IP 54 opt.
B7005109 ERGO-CASE S, high

B7005109

ERGO-CASE S, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7005109

ERGO-CASE S, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
80x96x44mm
IP 54 opt.
B7010109 ERGO-CASE M, flat

B7010109

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7010109

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x40mm
IP 54 opt.
B7010209 ERGO-CASE M, flat

B7010209

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7010209

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x40mm
IP 54 opt.
B7015109 ERGO-CASE M, high

B7015109

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With high top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7015109

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x55mm
IP 54 opt.
B7015209 ERGO-CASE M, high

B7015209

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7015209

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x55mm
IP 54 opt.

Customising options for B7110109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PA 6
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
