A9421107 EVOTEC 100, Vers. I
Posunout

A9421107

EVOTEC 100, Vers. I

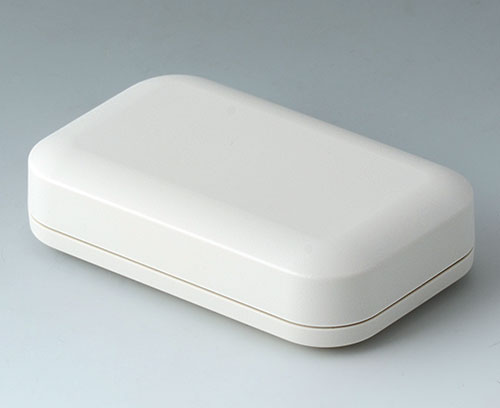

2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Top part "Flat"

Supply

Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9421107

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "protection"

A9502030 Sealing 100

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Zavřít

A9502030

Sealing 100
Produkt byl přidán do Vašeho košíku.

Accessory "wall/holder"

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit
