A9504030 Sealing 150
Posunout

A9504030

Sealing 150

Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply

1 seal

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9504030

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
A9441107 EVOTEC 150, Vers. I

A9441107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Zavřít

A9441107

EVOTEC 150, Vers. I
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x35mm
IP 65 opt., IP 40
A9443107 EVOTEC 150, Vers. I

A9443107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 45. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Zavřít

A9443107

EVOTEC 150, Vers. I
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x45mm
IP 65 opt., IP 40

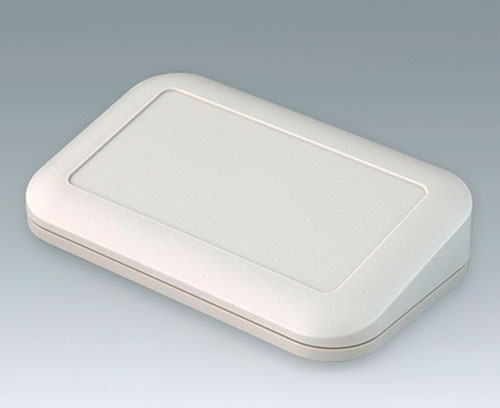

A9446107 EVOTEC 150, Vers. III

A9446107

EVOTEC 150, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Zavřít

A9446107

EVOTEC 150, Vers. III
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x36mm
IP 65 opt., IP 40
C3208107 EASYTEC 150

C3208107

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Zavřít

C3208107

EASYTEC 150
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x36mm
IP 65 opt., IP 40

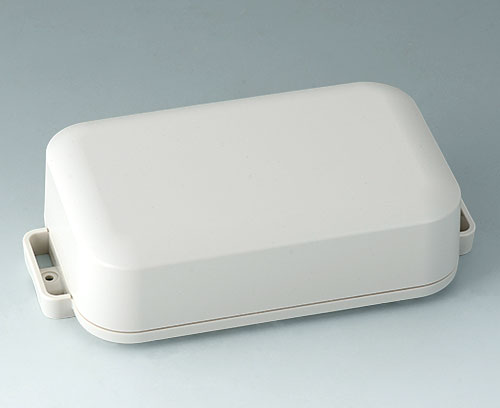

C3208207 EASYTEC 150

C3208207

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Zavřít

C3208207

EASYTEC 150
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x46mm
IP 65 opt., IP 40
  • Technická data
  • Kupní data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Germany
