C7116087 Standard DIN rail, Type TH 15
Posunout

C7116087

Standard DIN rail, Type TH 15

Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply

1 standard DIN rail TH 15

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro C7116087

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories

System components to complete

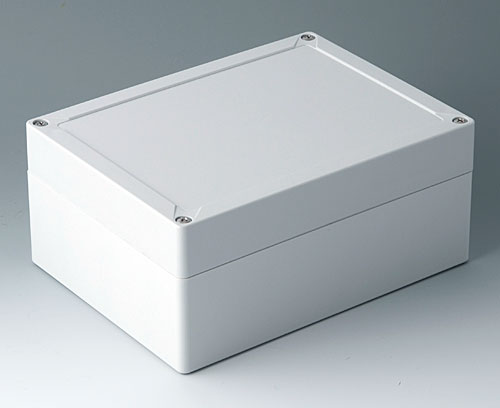

C7021071 IN-BOX

C7021071

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zavřít

C7021071

IN-BOX
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 07

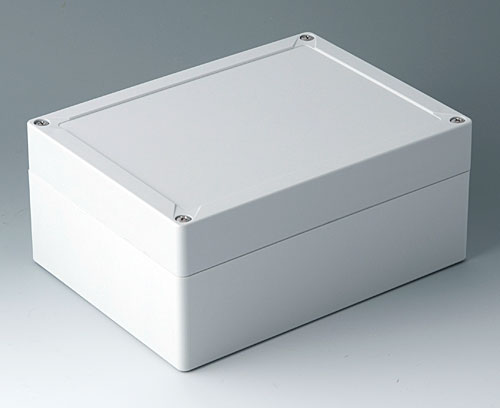

C7021072 IN-BOX

C7021072

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zavřít

C7021072

IN-BOX
Produkt byl přidán do Vašeho košíku.
PC
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 08

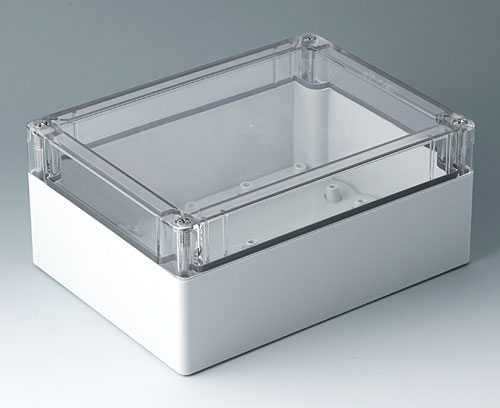

C7021074 IN-BOX

C7021074

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zavřít

C7021074

IN-BOX
Produkt byl přidán do Vašeho košíku.
ABS/PC (UL 94 HB)
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 07
C7021075 IN-BOX

C7021075

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zavřít

C7021075

IN-BOX
Produkt byl přidán do Vašeho košíku.
PC
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Zavřít

C7100167

Screw 3.9 x 9 mm
Produkt byl přidán do Vašeho košíku.
  • Technická data
  • Kupní data
Materiál
Steel
Standards
RoHS compliant
DIN EN 60715 TH15
REACH compliant
Length
168 mm
Width
15 mm
Height
5,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
26 g
Customs tariff number
(OKW product)
72287010
Country of manufacture
Germany
