Minimum components (for single parts)
1 bottom part, vers. I.
1 front design (cover or front panel Al).

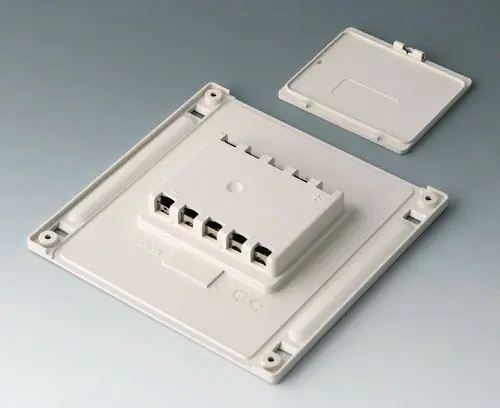

1 battery compartment and lid.
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid.
System components to complete

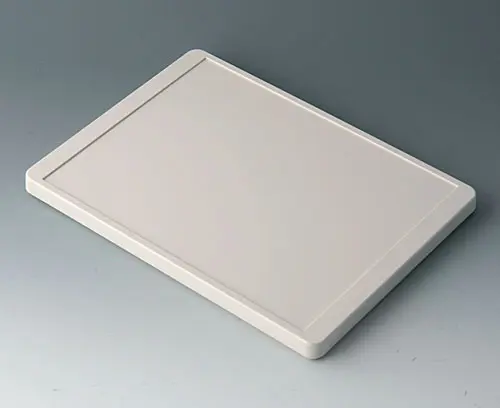

B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Zavřít
Cover M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x14mm

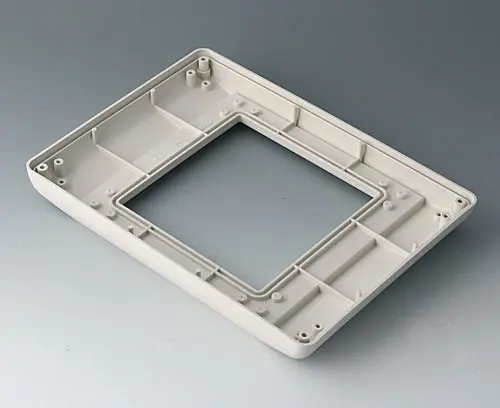

B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757

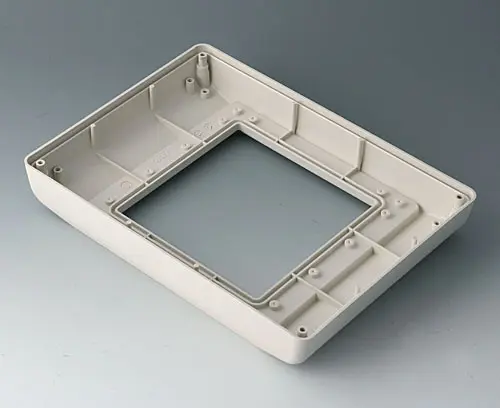

Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.

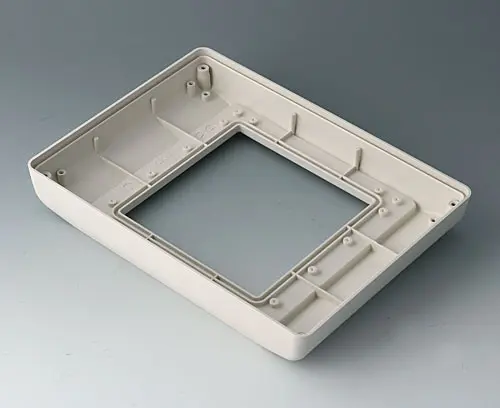

B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.

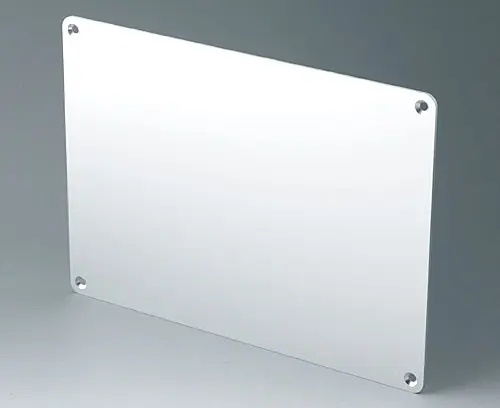

B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
Aluminium
matt anodised
221,5x161,5x2mm

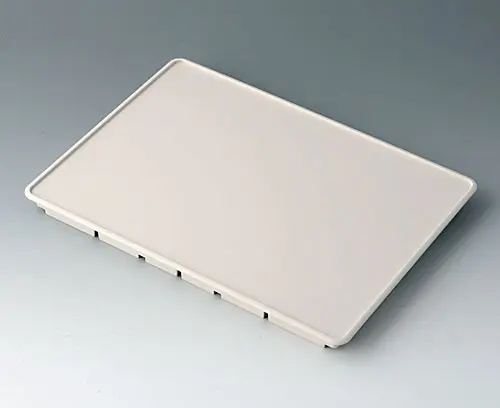

B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm

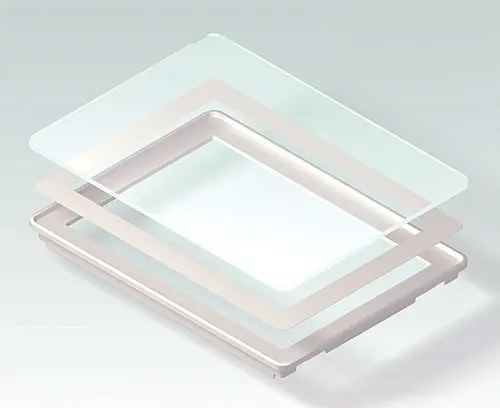

B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Zavřít
Glass panel M
Produkt byl přidán do Vašeho košíku.
Glass
clear
225,6x165,6x17,7mm
Accessory "protection"
B4144005
Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zavřít
Sealing M (bottom part - front design)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zavřít
Sealing M (bottom part - base/bot. panel/bat. comp...)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated
Minimum components (for single parts)
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid or bottom panel with recess.
1 base – station for mobile case –
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid or bottom panel with handle recess.
1 base – station for mobile case –
System components to complete
B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Zavřít
Cover M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x14mm
B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757
Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.

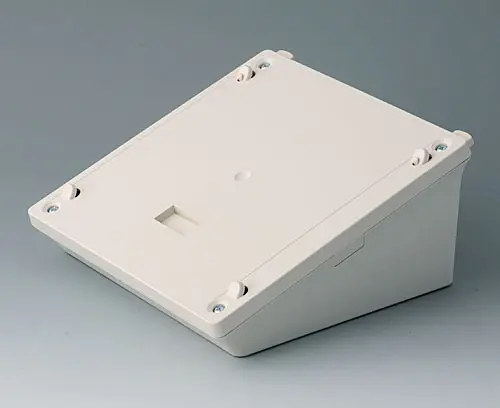

B4044837
Base M - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Zavřít
Base M - charging station, case deposit mobile
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
153x153x70mm
B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
Aluminium
matt anodised
221,5x161,5x2mm
B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm
B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Zavřít
Glass panel M
Produkt byl přidán do Vašeho košíku.
Glass
clear
225,6x165,6x17,7mm
Accessory "protection"
B4144005
Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zavřít
Sealing M (bottom part - front design)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zavřít
Sealing M (bottom part - base/bot. panel/bat. comp...)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated
Minimum components
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid or 1 bottom panel with handle recess.

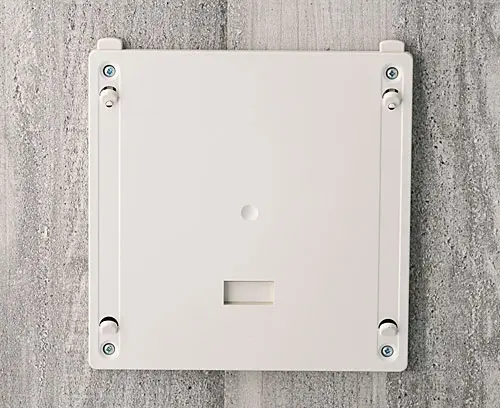

1 wall suspension element.
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid or 1 bottom panel with handle recess.
1 wall suspension element.
System components to complete
B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Zavřít
Cover M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x14mm
B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Zavřít
Bottom part M flat, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757
Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version I
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Zavřít
Bottom part M high, version II
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
Aluminium
matt anodised
221,5x161,5x2mm
B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Zavřít
Front panel M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm
B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Zavřít
Glass panel M
Produkt byl přidán do Vašeho košíku.
Glass
clear
225,6x165,6x17,7mm
B4144247
Wall suspension element M
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Zavřít
Wall suspension element M
Produkt byl přidán do Vašeho košíku.
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4144005
Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zavřít
Sealing M (bottom part - front design)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zavřít
Sealing M (bottom part - base/bot. panel/bat. comp...)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Zavřít
Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated
Customising options for B4144047
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
DIN modulární skříňka
Přidat do košíku
