A9190012 Set of battery clips, 4 x AA
Posunout

A9190012

Set of battery clips, 4 x AA

For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply

2 single contact positive, 2 single contact negative

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9190012

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
A9075107 DATEC-MOBIL-BOX L, Vers. I

A9075107

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

Zavřít

A9075107

DATEC-MOBIL-BOX L, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.

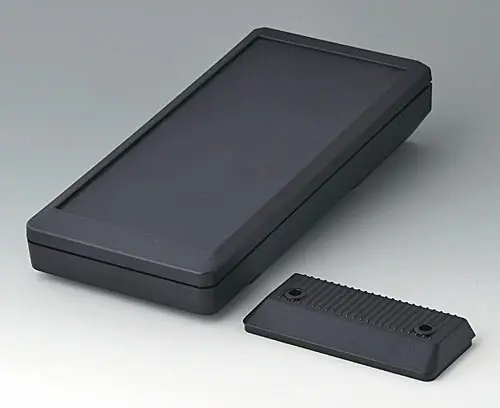

A9075109 DATEC-MOBIL-BOX L, Vers. I

A9075109

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

Zavřít

A9075109

DATEC-MOBIL-BOX L, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075207 DATEC-MOBIL-BOX L, Vers. II

A9075207

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Zavřít

A9075207

DATEC-MOBIL-BOX L, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Zavřít

A9075209

DATEC-MOBIL-BOX L, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
  • Technická data
  • Kupní data
Materiál
Steel
Barva
nickel-plated
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
U.S.A.
