A9190024 Set of battery clips, 3 x AAA
Posunout

A9190024

Set of battery clips, 3 x AAA

For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply

1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9190024

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
A9005207 DATEC-COMPACT S

A9005207

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9005207

DATEC-COMPACT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 65
A9005208 DATEC-COMPACT S

A9005208

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9005208

DATEC-COMPACT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 65

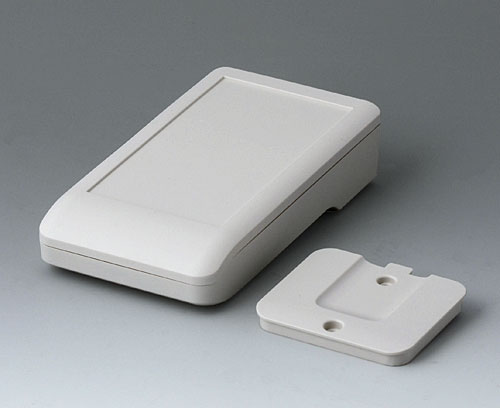

A9005217 DATEC-COMPACT S

A9005217

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9005217

DATEC-COMPACT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 41

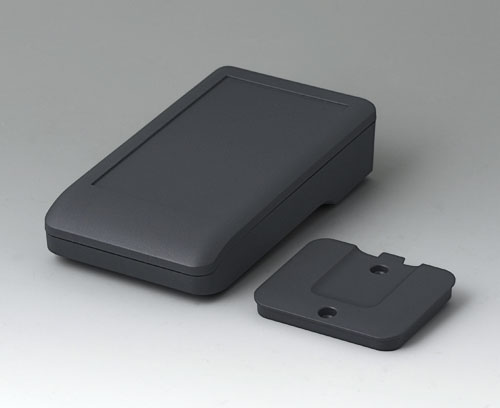

A9005218 DATEC-COMPACT S

A9005218

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9005218

DATEC-COMPACT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 41
  • Technická data
  • Kupní data
Materiál
Steel
Barva
nickel-plated
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
Germany
