B6600222 Plug header, block 5.08
Posunout

B6600222

Plug header, block 5.08

Male terminal block, 5.08. 3-pin.

Supply

1 piece

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B6600222

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
B6506112 RAILTEC B, 12 modules, Vers. II

B6506112

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Zavřít

B6506112

RAILTEC B, 12 modules, Vers. II
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

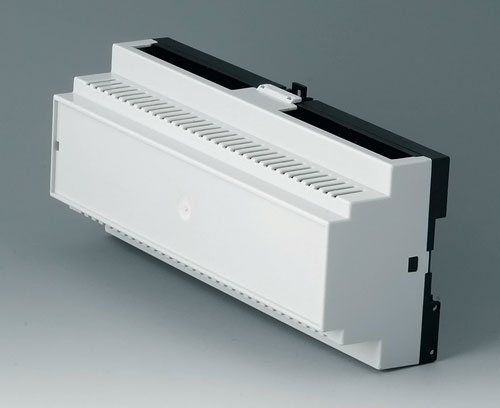

B6506115 RAILTEC B, 12 modules, Vers. II

B6506115

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Zavřít

B6506115

RAILTEC B, 12 modules, Vers. II
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version with closed side panels

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

Zavřít

B6522101

RAILTEC BP, M22, with closed side panels
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

RAILTEC BP, M22, closed/with ventilation slots DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 1 side panel closed, 1 side panel with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

Zavřít

B6522102

RAILTEC BP, M22, closed/with ventilation slots
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 2 side panels with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

Zavřít

B6522103

RAILTEC BP, M22, with ventilation slots
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
  • Technická data
  • Nákresy / Info
  • Kupní data
Materiál
PA 68 (UL 94 V-0)
Standards
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
3
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
