B1904101 Sealing S50/SF50
Posunout

B1904101

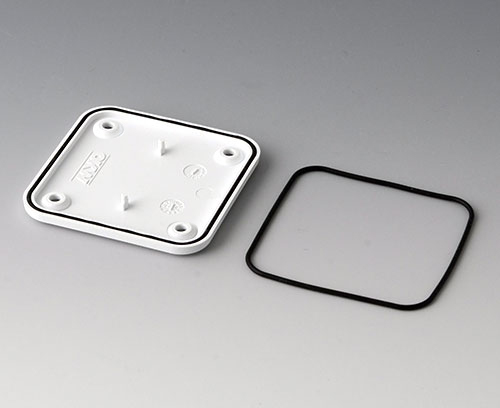

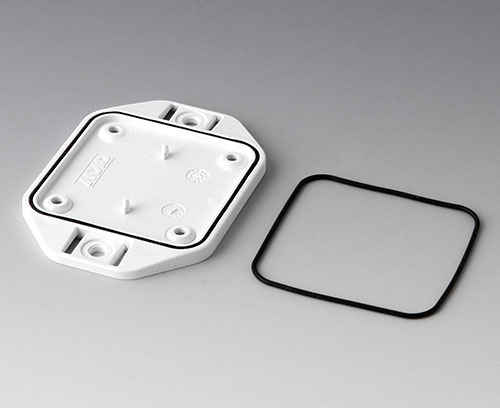

Sealing S50/SF50

Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.

Supply

1 seal

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B1904101

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for

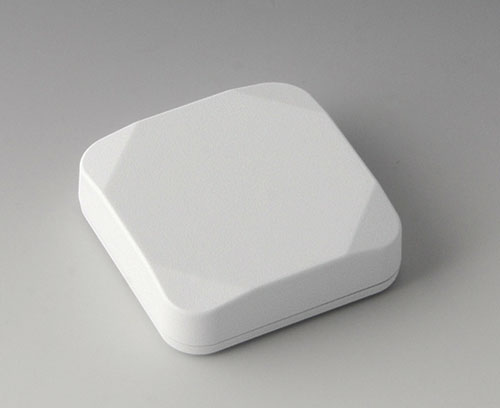

B1804117 MINI-DATA-BOX S50, flat

B1804117

MINI-DATA-BOX S50, flat 2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part flat

Supply Top and bottom parts, assembly kit

Zavřít

B1804117

MINI-DATA-BOX S50, flat
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x15mm
IP 65 opt., IP 40
B1804118 MINI-DATA-BOX S50, flat

B1804118

MINI-DATA-BOX S50, flat 2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part flat

Supply Top and bottom parts, assembly kit

Zavřít

B1804118

MINI-DATA-BOX S50, flat
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
50x50x15mm
IP 65 opt., IP 40
B1804126 MINI-DATA-BOX SF50, flat, with flanges

B1804126

MINI-DATA-BOX SF50, flat, with flanges 2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part flat

Supply Top and bottom parts, assembly kit

Zavřít

B1804126

MINI-DATA-BOX SF50, flat, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x15mm
IP 65 opt., IP 40
B1804127 MINI-DATA-BOX SF50, flat, with flanges

B1804127

MINI-DATA-BOX SF50, flat, with flanges 2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part flat

Supply Top and bottom parts, assembly kit

Zavřít

B1804127

MINI-DATA-BOX SF50, flat, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x15mm
IP 65 opt., IP 40

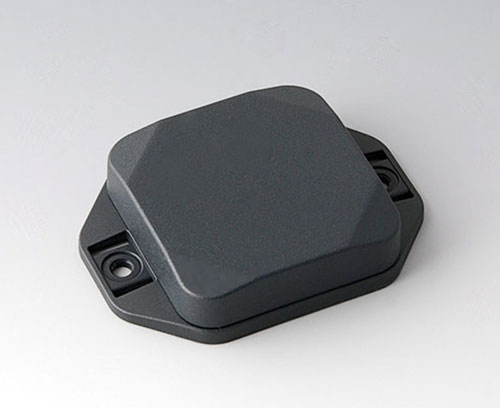

B1804128 MINI-DATA-BOX SF50, flat, with flanges

B1804128

MINI-DATA-BOX SF50, flat, with flanges 2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part flat

Supply Top and bottom parts, assembly kit

Zavřít

B1804128

MINI-DATA-BOX SF50, flat, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
50x50x15mm
IP 65 opt., IP 40

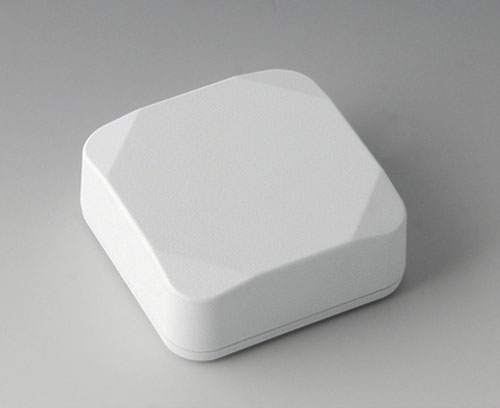

B1804217 MINI-DATA-BOX S50, high

B1804217

MINI-DATA-BOX S50, high 2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part high

Supply Top and bottom parts, assembly kit

Zavřít

B1804217

MINI-DATA-BOX S50, high
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x20mm
IP 65 opt., IP 40

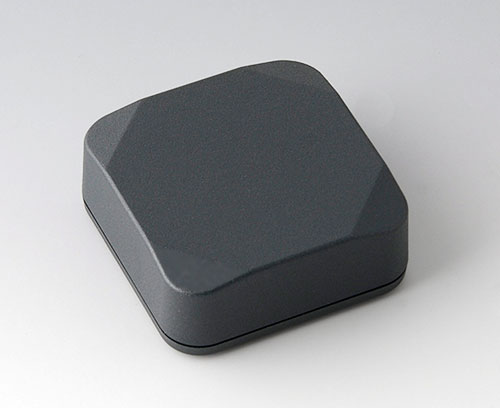

B1804218 MINI-DATA-BOX S50, high

B1804218

MINI-DATA-BOX S50, high 2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part high

Supply Top and bottom parts, assembly kit

Zavřít

B1804218

MINI-DATA-BOX S50, high
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
50x50x20mm
IP 65 opt., IP 40

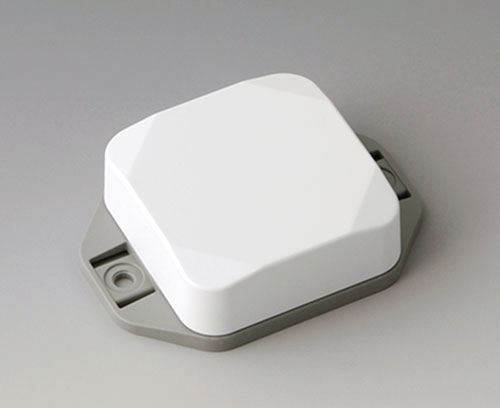

B1804226 MINI-DATA-BOX SF50, high, with flanges

B1804226

MINI-DATA-BOX SF50, high, with flanges 2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part high

Supply Top and bottom parts, assembly kit

Zavřít

B1804226

MINI-DATA-BOX SF50, high, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x20mm
IP 65 opt., IP 40
B1804227 MINI-DATA-BOX SF50, high, with flanges

B1804227

MINI-DATA-BOX SF50, high, with flanges 2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part high

Supply Top and bottom parts, assembly kit

Zavřít

B1804227

MINI-DATA-BOX SF50, high, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
traffic white RAL 9016
50x50x20mm
IP 65 opt., IP 40

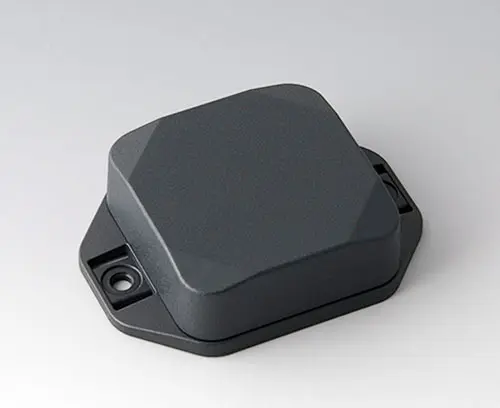

B1804228 MINI-DATA-BOX SF50, high, with flanges

B1804228

MINI-DATA-BOX SF50, high, with flanges 2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part high

Supply Top and bottom parts, assembly kit

Zavřít

B1804228

MINI-DATA-BOX SF50, high, with flanges
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
50x50x20mm
IP 65 opt., IP 40
  • Technická data
  • Kupní data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
