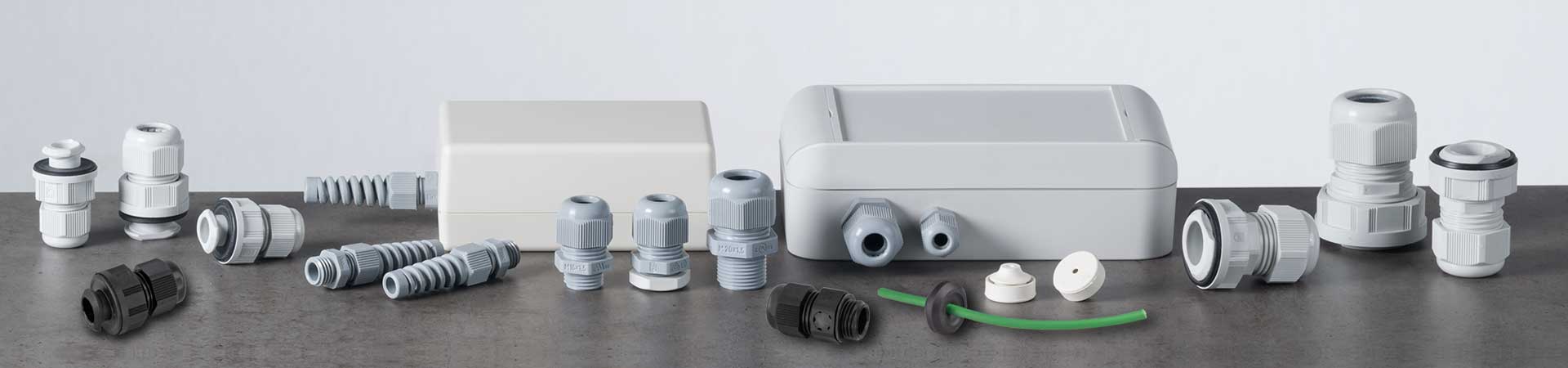

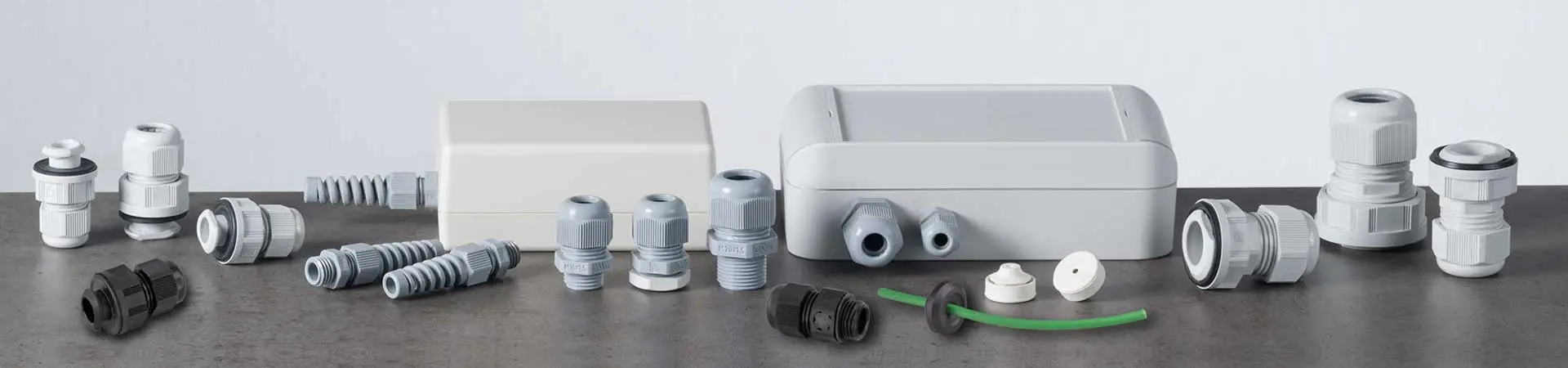

Kabelové průchodky, kabelové ochrany
Posunout

Kabelové průchodky, kabelové ochrany, odlehčení

  • Vysoký stupeň krytí IP 68 se závitovou koncovkou, těsnicím kroužkem. Rozměry od M12 do M32
  • Wersja kabelové průchodky quick fix. Tato kabelová vývodka přesahuje pouzdro pouhých několik milimetrů, čímž nezakrývá jiné součásti v interiéru. Kromě toho se vyznačuje racionální montáží bez speciálních nástrojů.
  • Odlehčení tahu pro ochranu elektrických vedení před mechanickým namáháním
Generovat PDF
  • Procházet celý seznam

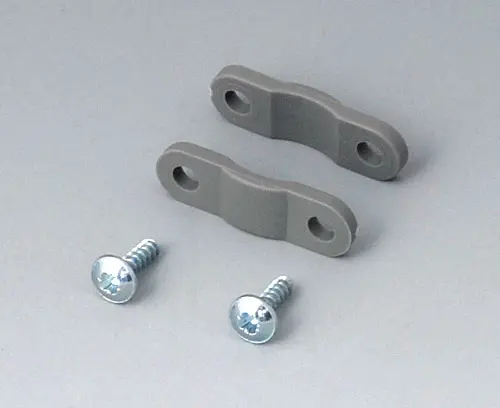

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Zavřít

A9166004

Set of pull-relief
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

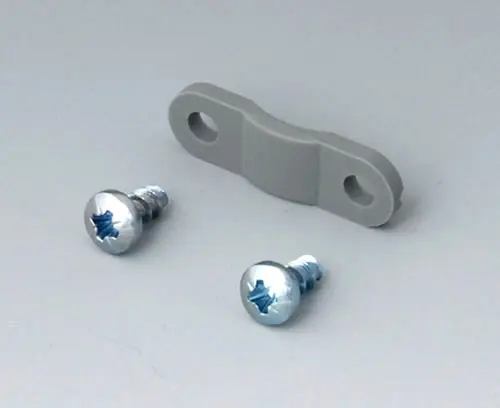

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Zavřít

A9199005

Strain relief
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

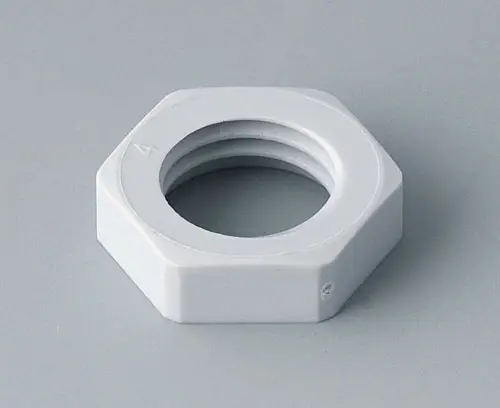

C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Zavřít

C2312117

Counternut M12x1.5
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035

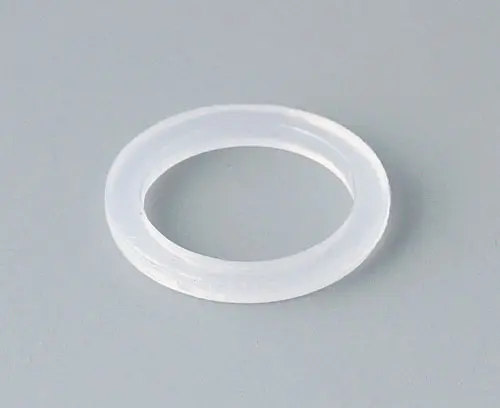

C2312126 Sealing ring for external thread M12x1.5

C2312126

Sealing ring for external thread M12x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Zavřít

C2312126

Sealing ring for external thread M12x1.5
Produkt byl přidán do Vašeho košíku.
PE
natural-coloured

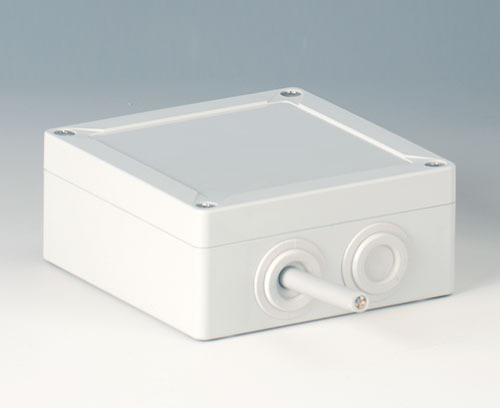

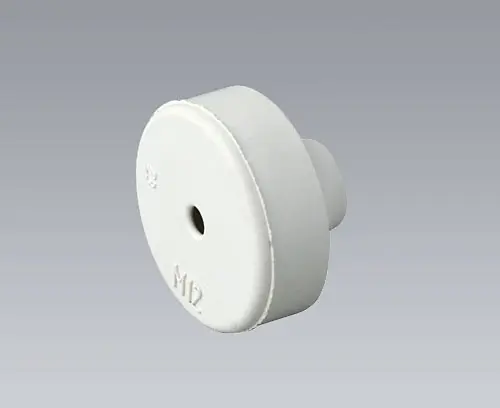

C2312137 Cable grommet

C2312137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 2 mm and for cable diameters from 4 - 7 mm. Operating temperatures from -40°C to +100°C. Borehole ø 12.5 mm.

Supply 1 cable grommet

Zavřít

C2312137

Cable grommet
Produkt byl přidán do Vašeho košíku.
EPDM
light grey RAL 7035
IP 67

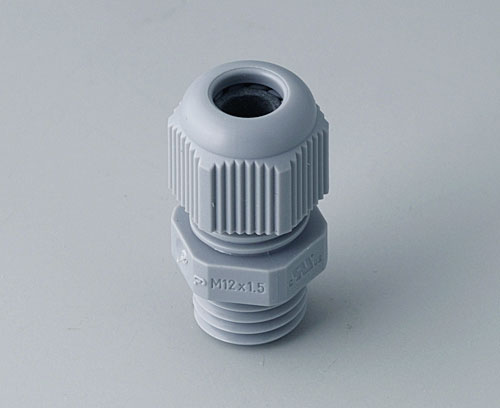

C2312418 Cable gland M12x1.5

C2312418

Cable gland M12x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

Zavřít

C2312418

Cable gland M12x1.5
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

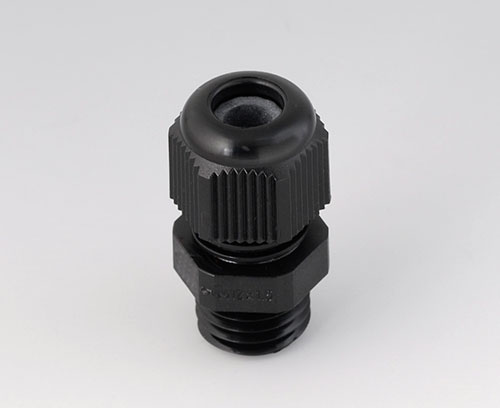

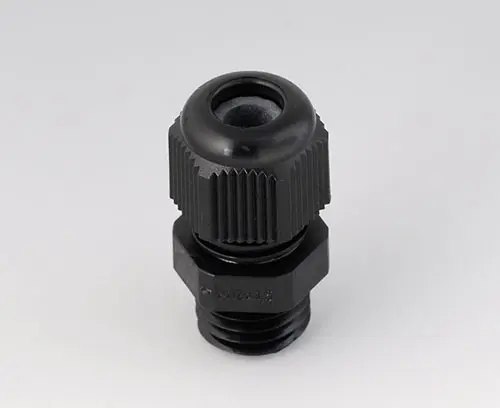

C2312419 Cable gland M12x1.5

C2312419

Cable gland M12x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

Zavřít

C2312419

Cable gland M12x1.5
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

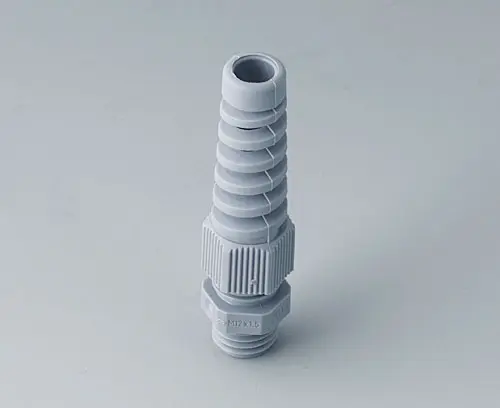

C2312518 Cable gland M12x1.5, bending protection

C2312518

Cable gland M12x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

Zavřít

C2312518

Cable gland M12x1.5, bending protection
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

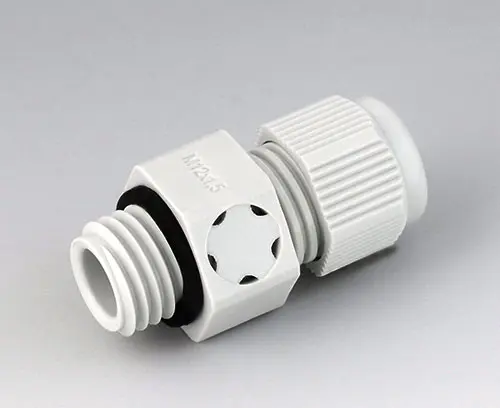

C2312917 Cable gland M12x1.5, pressure compensation

C2312917

Cable gland M12x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 3 - 6.5 mm cables.

Supply 1 cable gland

Zavřít

C2312917

Cable gland M12x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035
IP 68

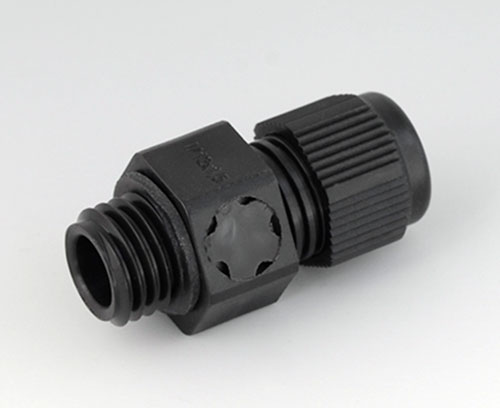

C2312919 Cable gland M12x1.5, pressure compensation

C2312919

Cable gland M12x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 3 - 6.5 mm cables.

Supply 1 cable gland

Zavřít

C2312919

Cable gland M12x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

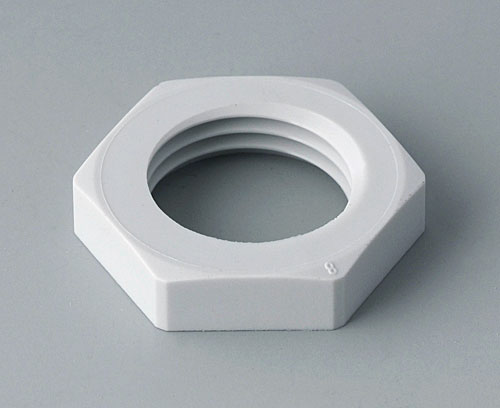

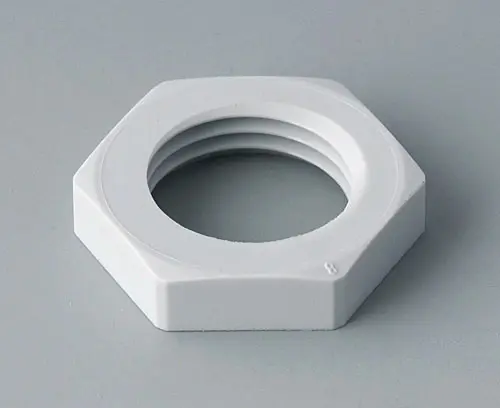

C2316117 Counternut M16x1.5

C2316117

Counternut M16x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Zavřít

C2316117

Counternut M16x1.5
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035

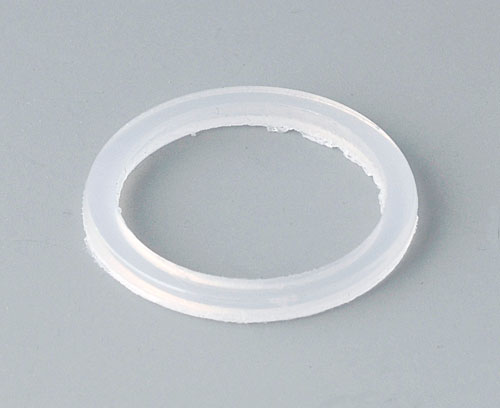

C2316126 Sealing ring for external thread M16x1.5

C2316126

Sealing ring for external thread M16x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Zavřít

C2316126

Sealing ring for external thread M16x1.5
Produkt byl přidán do Vašeho košíku.
PE
natural-coloured

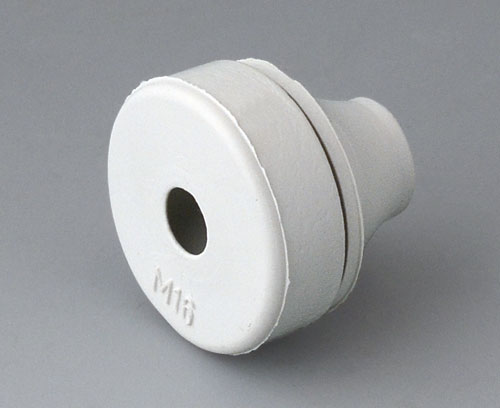

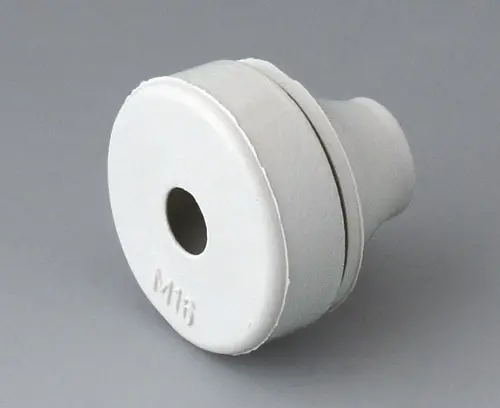

C2316137 Cable grommet

C2316137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 5 - 9 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zavřít

C2316137

Cable grommet
Produkt byl přidán do Vašeho košíku.
EPDM
light grey RAL 7035
IP 67
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zavřít

C2316147

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE
light grey RAL 7035
IP 67

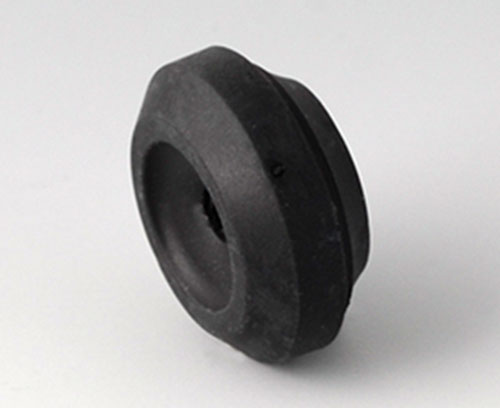

C2316159 Cable grommet

C2316159

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens and sulphur. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +80°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zavřít

C2316159

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE (UL 94 V-0)
black RAL 9005
IP 67

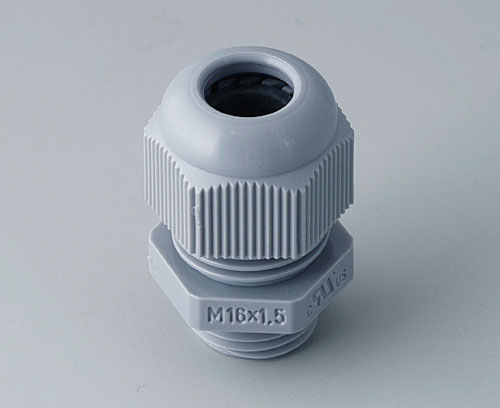

C2316418 Cable gland M16x1.5

C2316418

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

Zavřít

C2316418

Cable gland M16x1.5
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

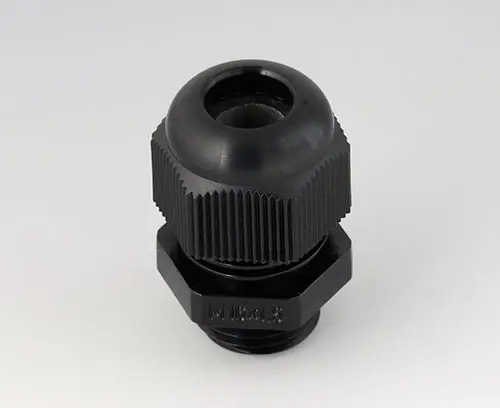

C2316419 Cable gland M16x1.5

C2316419

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

Zavřít

C2316419

Cable gland M16x1.5
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

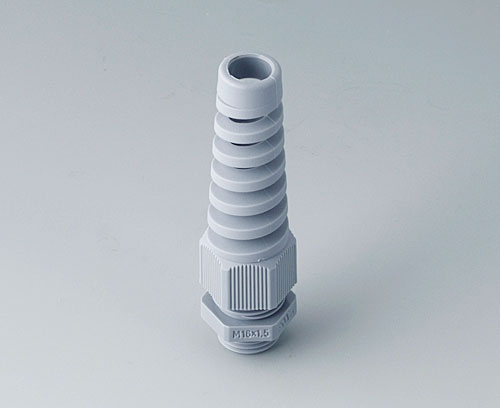

C2316518 Cable gland M16x1.5, bending protection

C2316518

Cable gland M16x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Zavřít

C2316518

Cable gland M16x1.5, bending protection
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

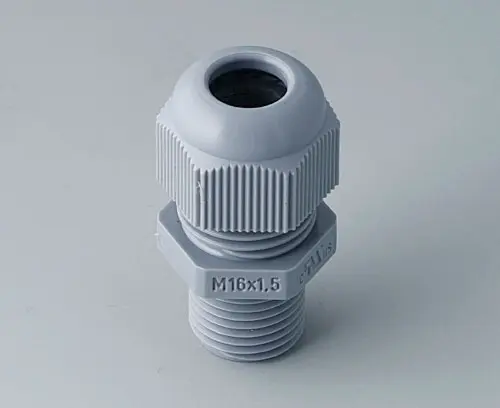

C2316618 Cable gland M16x1.5

C2316618

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 15 mm.

Supply 1 cable gland

Zavřít

C2316618

Cable gland M16x1.5
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

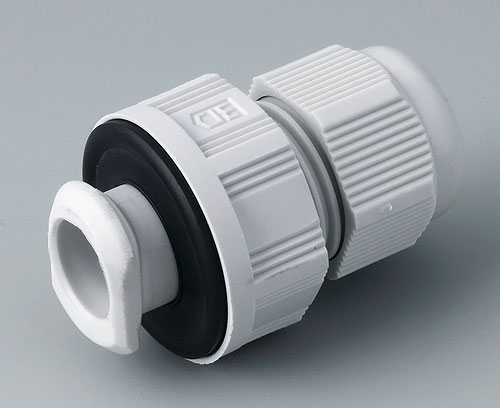

C2316717 Quick fix cable gland, M16

C2316717

Quick fix cable gland, M16 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Zavřít

C2316717

Quick fix cable gland, M16
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035
IP 68

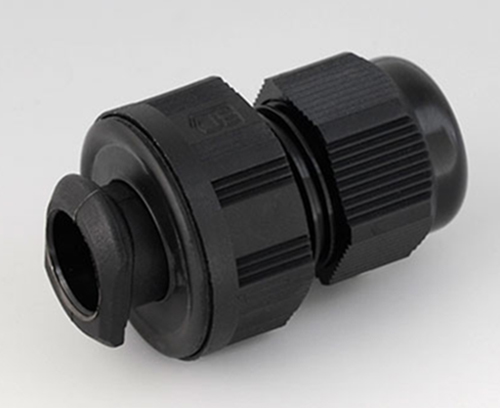

C2316719 Quick fix cable gland, M16

C2316719

Quick fix cable gland, M16 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Zavřít

C2316719

Quick fix cable gland, M16
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

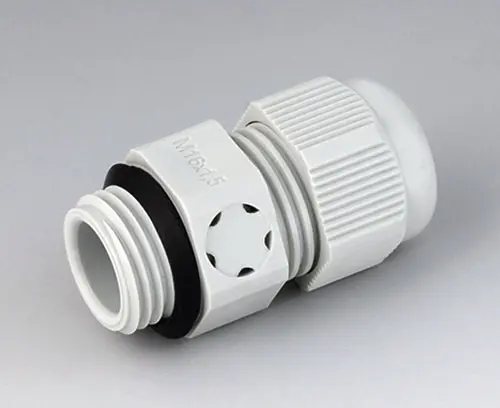

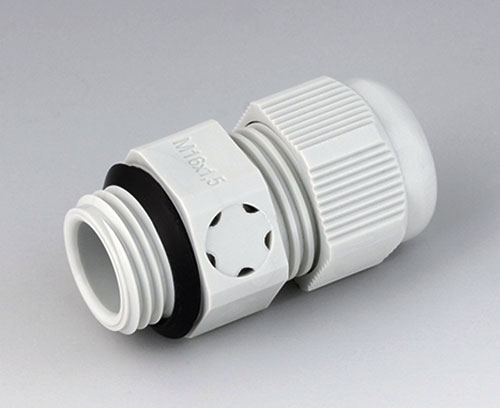

C2316917 Cable gland M16x1.5, pressure compensation

C2316917

Cable gland M16x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 5 - 9.5 mm cables.

Supply 1 cable gland

Zavřít

C2316917

Cable gland M16x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035
IP 68

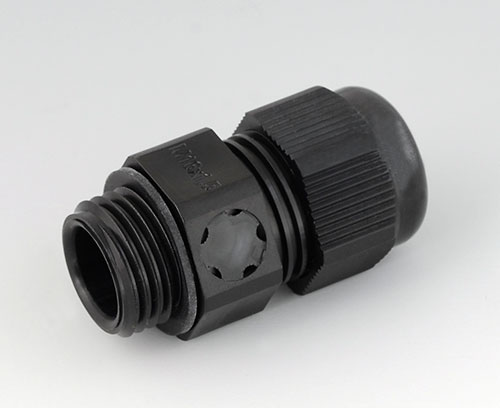

C2316919 Cable gland M16x1.5, pressure compensation

C2316919

Cable gland M16x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 5 - 9.5 mm cables.

Supply 1 cable gland

Zavřít

C2316919

Cable gland M16x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

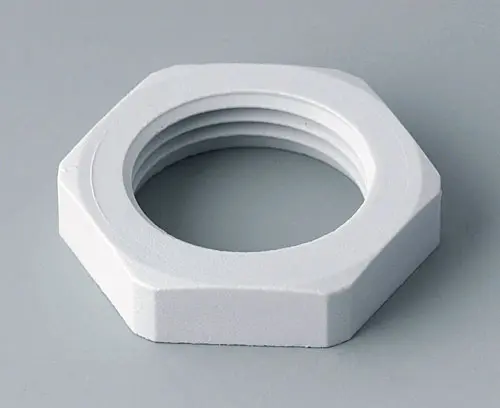

C2320117 Counternut M20x1.5

C2320117

Counternut M20x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Zavřít

C2320117

Counternut M20x1.5
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035

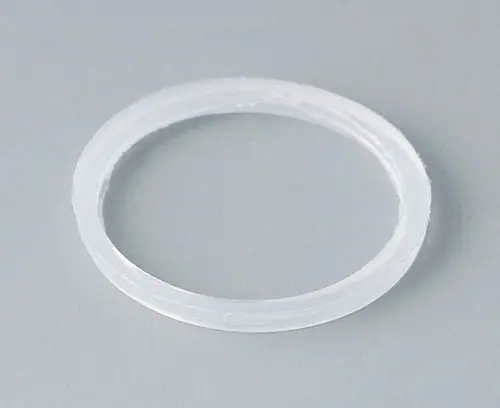

C2320126 Sealing ring for external thread M20x1.5

C2320126

Sealing ring for external thread M20x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Zavřít

C2320126

Sealing ring for external thread M20x1.5
Produkt byl přidán do Vašeho košíku.
PE
natural-coloured
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zavřít

C2320137

Cable grommet
Produkt byl přidán do Vašeho košíku.
EPDM
light grey RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zavřít

C2320147

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE
light grey RAL 7035
IP 67

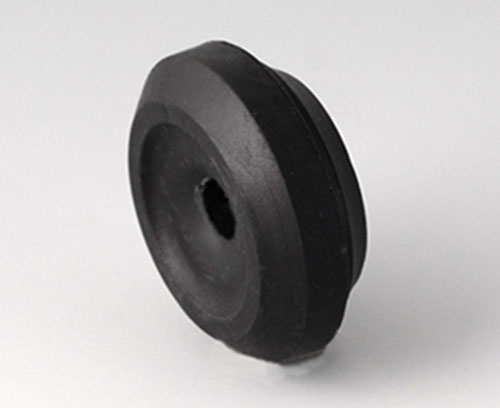

C2320159 Cable grommet

C2320159

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens and sulphur. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +80°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zavřít

C2320159

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE (UL 94 V-0)
black RAL 9005
IP 67

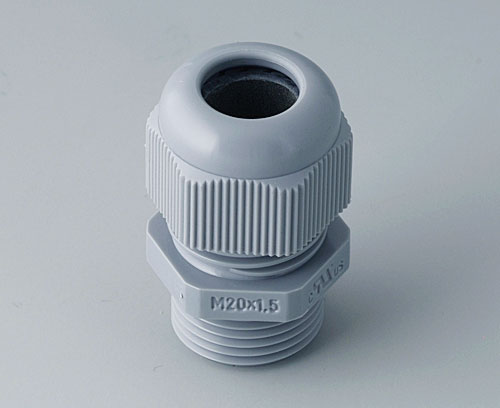

C2320418 Cable gland M20x1.5

C2320418

Cable gland M20x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply 1 cable gland

Zavřít

C2320418

Cable gland M20x1.5
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

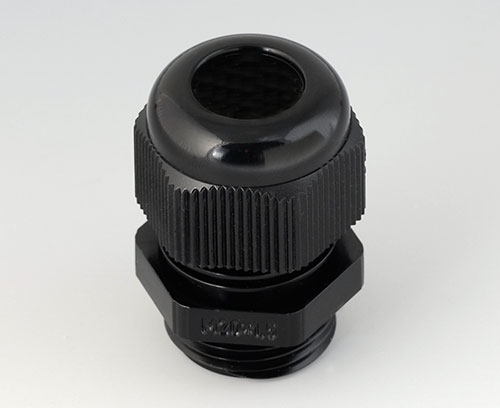

C2320419 Cable gland M20x1.5

C2320419

Cable gland M20x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply 1 cable gland

Zavřít

C2320419

Cable gland M20x1.5
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

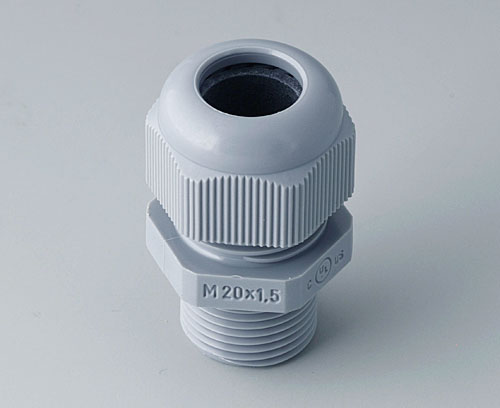

C2320428 Cable gland M20x1.5

C2320428

Cable gland M20x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 10 - 14 mm.

Supply 1 cable gland

Zavřít

C2320428

Cable gland M20x1.5
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

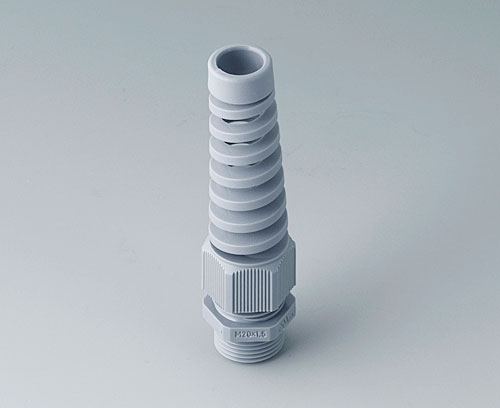

C2320518 Cable gland M20x1.5, bending protection

C2320518

Cable gland M20x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply 1 cable gland

Zavřít

C2320518

Cable gland M20x1.5, bending protection
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

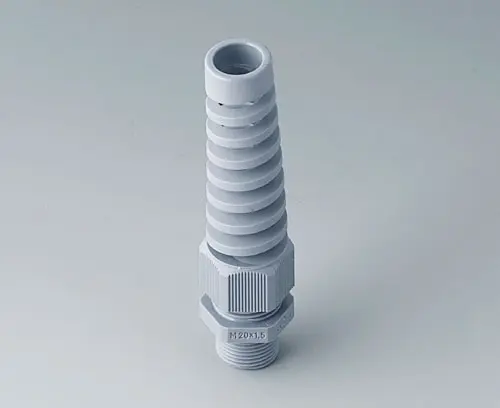

C2320528 Cable gland M20x1.5, bending protection

C2320528

Cable gland M20x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 10 - 14 mm.

Supply 1 cable gland

Zavřít

C2320528

Cable gland M20x1.5, bending protection
Produkt byl přidán do Vašeho košíku.
PA
silver grey RAL 7001
IP 68

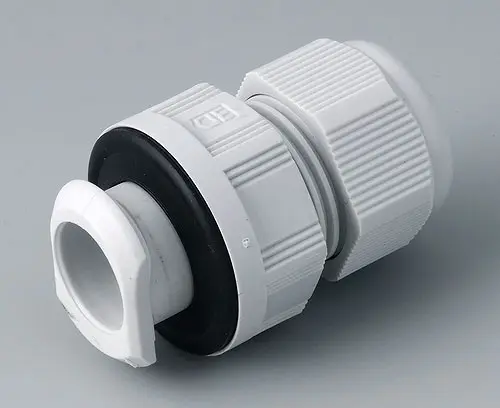

C2320717 Quick fix cable gland, M20

C2320717

Quick fix cable gland, M20 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 8 - 13 mm.

Supply 1 cable gland

Zavřít

C2320717

Quick fix cable gland, M20
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035
IP 68

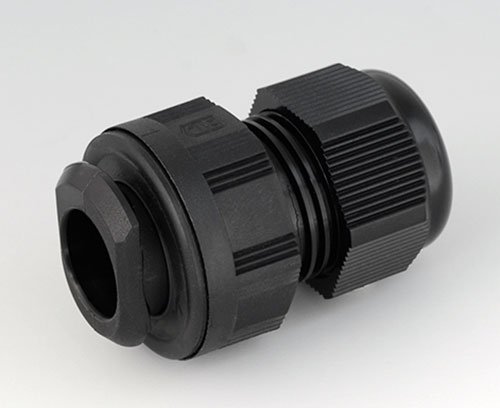

C2320719 Quick fix cable gland, M20

C2320719

Quick fix cable gland, M20 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 8 - 13 mm.

Supply 1 cable gland

Zavřít

C2320719

Quick fix cable gland, M20
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

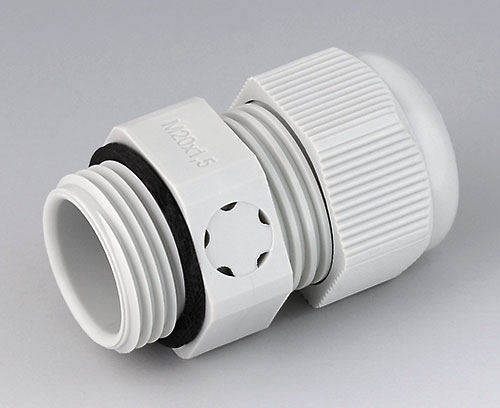

C2320917 Cable gland M20x1.5, pressure compensation

C2320917

Cable gland M20x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 8 - 13 mm cables.

Supply 1 cable gland

Zavřít

C2320917

Cable gland M20x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
light grey RAL 7035
IP 68

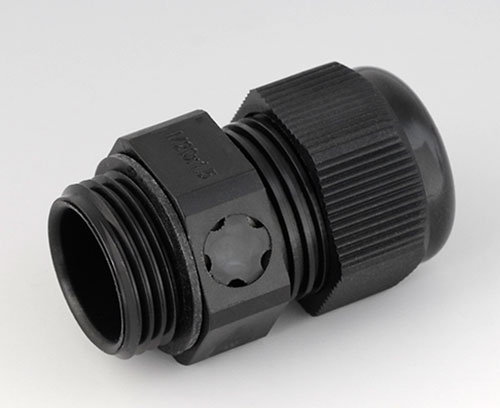

C2320919 Cable gland M20x1.5, pressure compensation

C2320919

Cable gland M20x1.5, pressure compensation Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 8 - 13 mm cables.

Supply 1 cable gland

Zavřít

C2320919

Cable gland M20x1.5, pressure compensation
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
IP 68

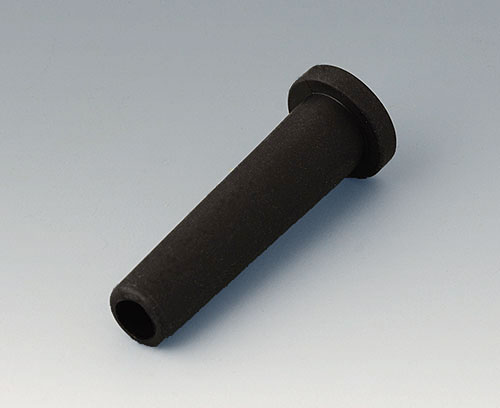

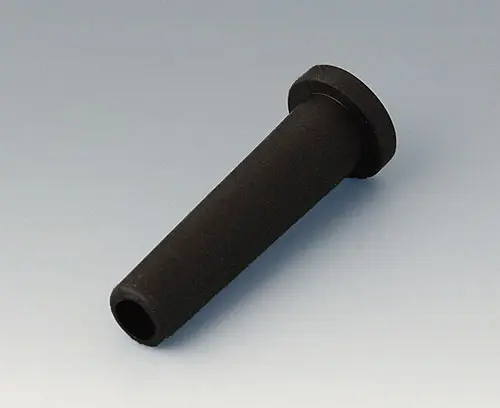

C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Zavřít

C2353849

Flexible cable grommet Ø 5,3
Produkt byl přidán do Vašeho košíku.
black
