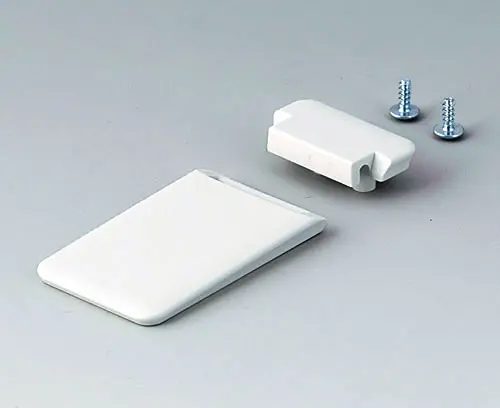

A9152057 Tilt foot bar
Posunout

A9152057

Tilt foot bar

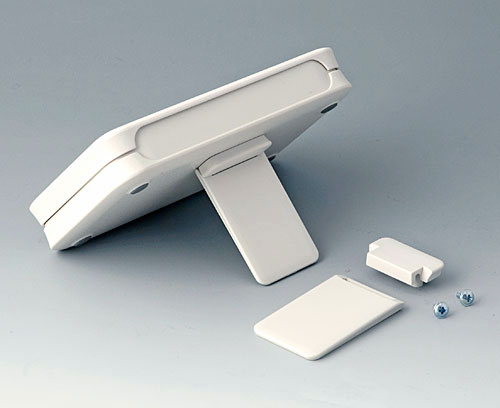

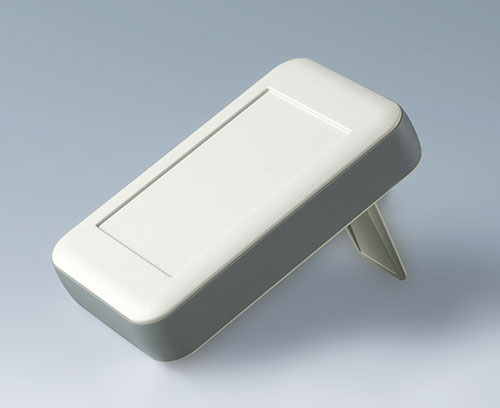

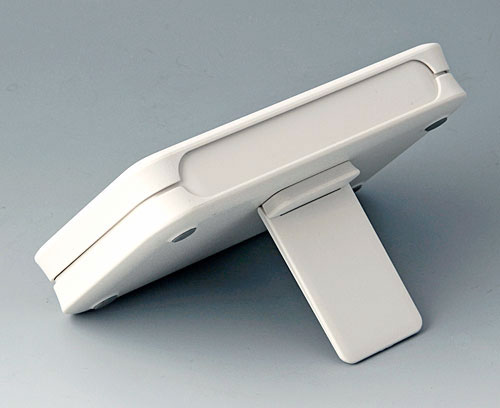

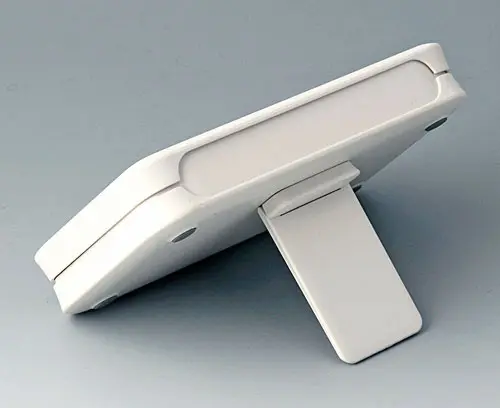

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply

1 tilt foot bar, assembly kit

3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9152057

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

System components to complete

A9050107 SOFT-CASE S

A9050107

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9050107

SOFT-CASE S
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
51x82x14mm
IP 54 opt., IP 40
A9051107 SOFT-CASE M

A9051107

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9051107

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 54 opt., IP 40
A9051117 SOFT-CASE M

A9051117

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9051117

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 40
A9052107 SOFT-CASE L

A9052107

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9052107

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 54 opt., IP 40
A9052117 SOFT-CASE L

A9052117

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9052117

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 40
A9052127 SOFT-CASE L

A9052127

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9052127

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 40
A9053107 SOFT-CASE XL

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9053107

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9053117

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9207150

Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for A9152057

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
