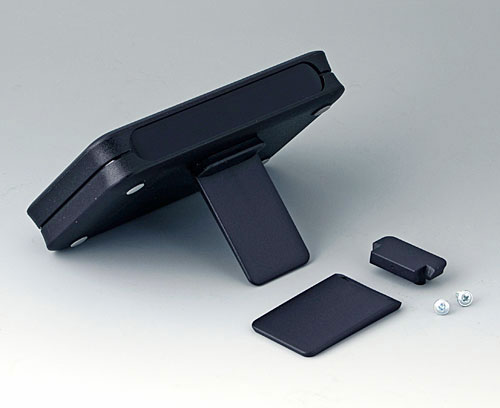

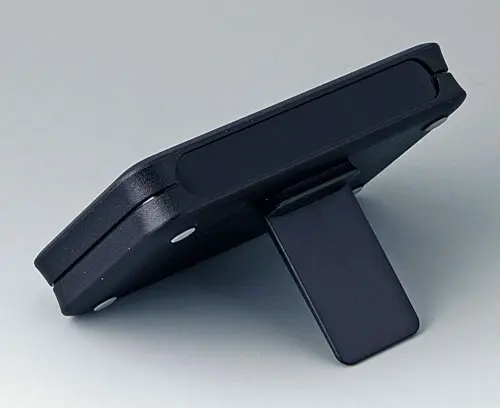

A9152059 Tilt foot bar
Posunout

A9152059

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply

1 tilt foot bar, assembly kit

3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9152059

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

System components to complete

A9050209 SOFT-CASE S

A9050209

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9050209

SOFT-CASE S
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
51x82x14mm
IP 54 opt., IP 40

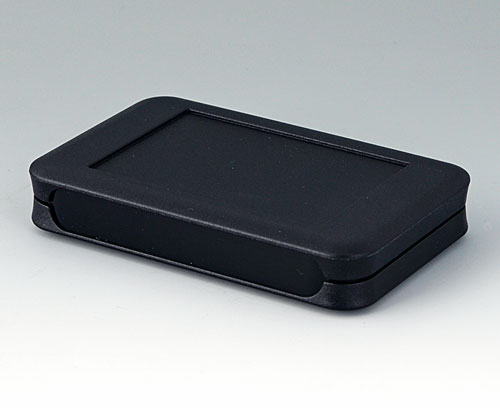

A9051209 SOFT-CASE M

A9051209

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9051209

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 54 opt., IP 40

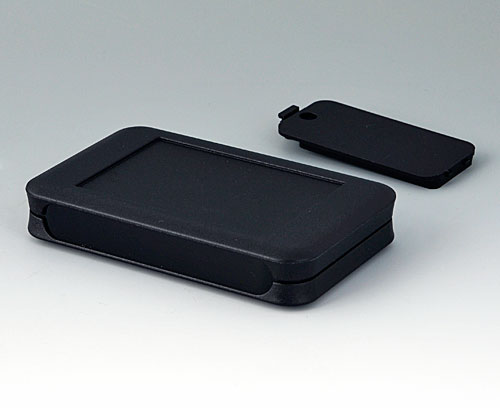

A9051219 SOFT-CASE M

A9051219

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9051219

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 40

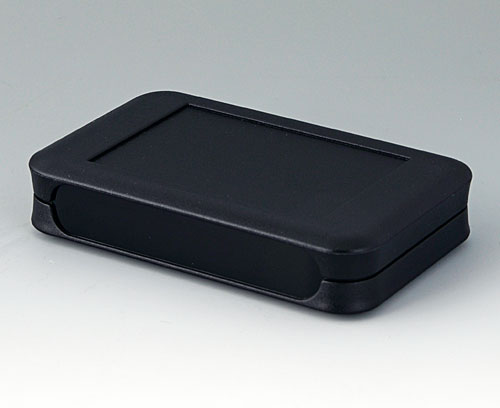

A9052209 SOFT-CASE L

A9052209

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9052209

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 54 opt., IP 40
A9052219 SOFT-CASE L

A9052219

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9052219

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 40

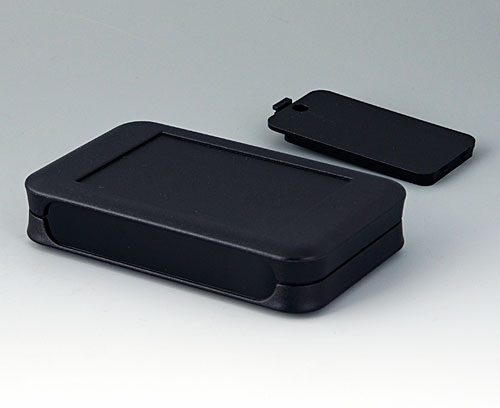

A9052229 SOFT-CASE L

A9052229

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9052229

SOFT-CASE L
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 40
A9053209 SOFT-CASE XL

A9053209

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9053209

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40
A9053219 SOFT-CASE XL

A9053219

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9053219

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9207150

Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for A9152059

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
