B4414207 PROTEC 140, Vers. II
Posunout

B4414207

PROTEC 140, Vers. II

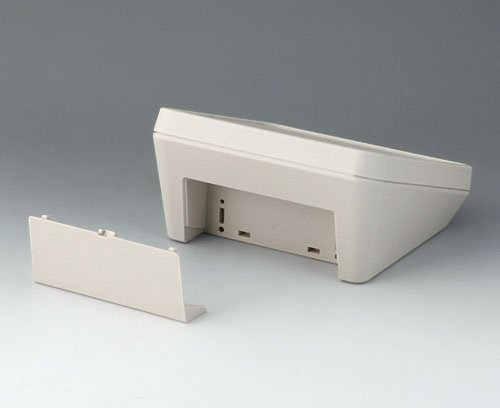

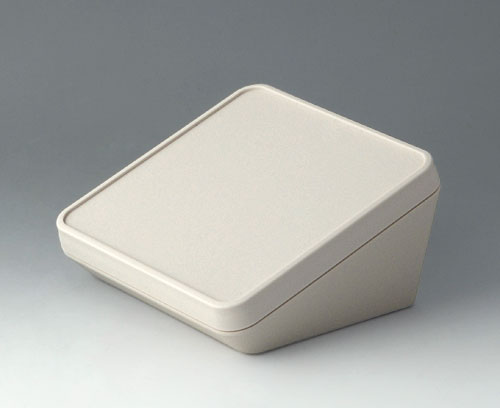

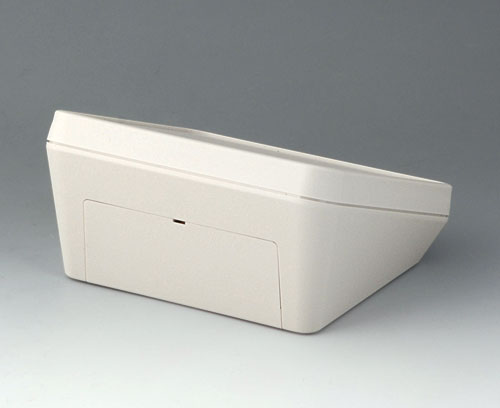

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply

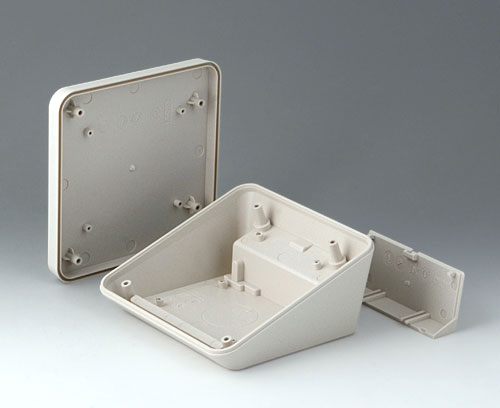

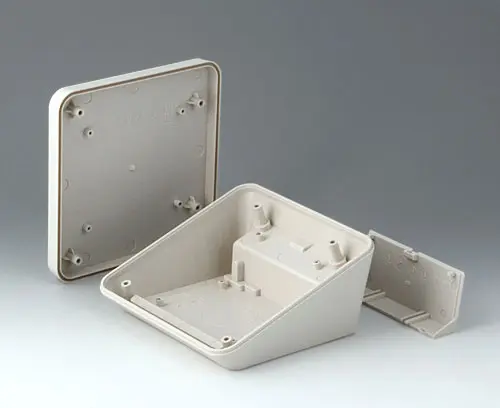

Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B4414207

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "protection"

B4514030 Sealing 140

B4514030

Sealing 140

Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zavřít

B4514030

Sealing 140
Produkt byl přidán do Vašeho košíku.

Accessory "wall/holder"

B4514101 Wall suspension element 140

B4514101

Wall suspension element 140

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Zavřít

B4514101

Wall suspension element 140
Produkt byl přidán do Vašeho košíku.
Aluminium

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produkt byl přidán do Vašeho košíku.
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T08

Torx T8 screwdriver
Produkt byl přidán do Vašeho košíku.
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T10

Torx T10 screwdriver
Produkt byl přidán do Vašeho košíku.

Customising options for B4414207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Příklady aplikací
  • Kupní data
Materiál
ASA+PC (UL 94 V-0)
Třída produktu
IP 65 opt.
Necessary accessories: sealing
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
140 mm
Depth
140 mm
Height
76 mm
PCB length, base
68 mm
PCB width, base
120 mm
PCB length, top
130 mm
PCB width, top
130 mm
Keypad length
130,9 mm
Keypad width
130,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
223 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
