B6514112 RAILTEC B, 6 modules, Vers. XII
Posunout

B6514112

RAILTEC B, 6 modules, Vers. XII

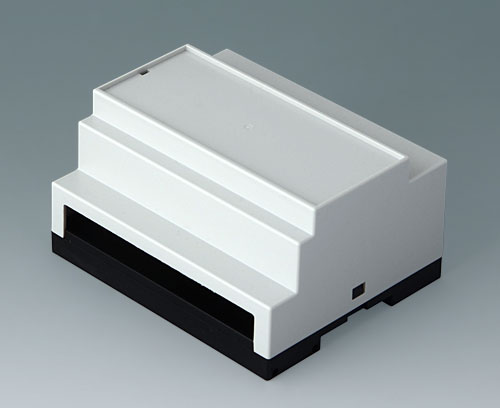

Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version

For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply

1 base part with locking clip, 1 top part

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B6514112

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Zavřít

B6600334

Wall suspension elements
Produkt byl přidán do Vašeho košíku.
PPO (UL 94 V-0)
black

Accessory "terminals"

B6604222 Plug header, block 5.08

B6604222

Plug header, block 5.08 Male terminal block, 5.08. 18-pin.

Supply 1 piece

Zavřít

B6604222

Plug header, block 5.08
Produkt byl přidán do Vašeho košíku.
PA 68 (UL 94 V-0)
B6604223 Plug header, block 5.08

B6604223

Plug header, block 5.08 Female terminal block, 5.08. 18-pin.

Supply 1 piece

Zavřít

B6604223

Plug header, block 5.08
Produkt byl přidán do Vašeho košíku.
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

B6604100 Lid, 6 modules

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Zavřít

B6604100

Lid, 6 modules
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
transparent

Customising options for B6514112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PC (UL 94 V-0)
Top part
PPO (UL 94 V-0)
Bottom part
Barva
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
105 mm
Height
86 mm
Depth
59 mm
PCB length, base
82,4 mm
PCB width, base
99,2 mm
Poles
≤ 36
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
72 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
