B6608141 Terminal guards, flat
Posunout

B6608141

Terminal guards, flat

Easy assembly through snap-in installation of the case parts.

Version

With ventilation slots

Supply

1 piece

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B6608141

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options

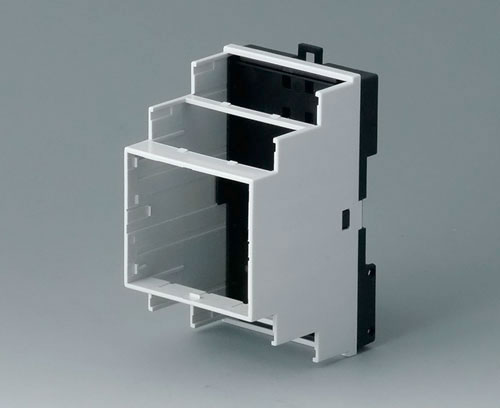

B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6502121

RAILTEC B, 3 modules, Vers. VI
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
52,5x90x58mm

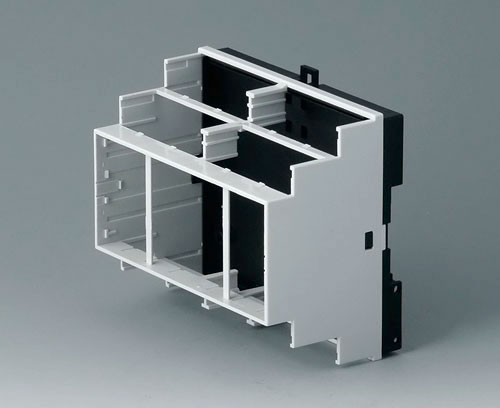

B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6504121

RAILTEC B, 6 modules, Vers. VI
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm

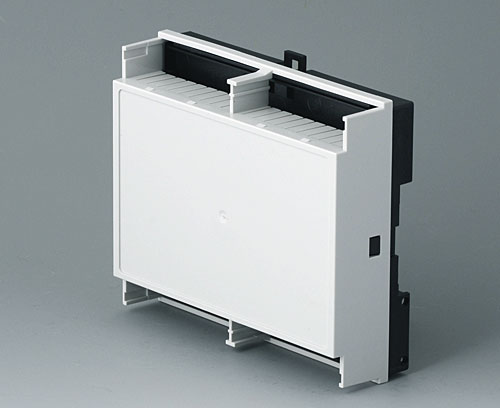

B6504229 RAILTEC B, 6 modules, Vers. low profile

B6504229

RAILTEC B, 6 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6504229

RAILTEC B, 6 modules, Vers. low profile
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
105x89,6x31,25mm
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6505121

RAILTEC B, 9 modules, Vers. VI
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm

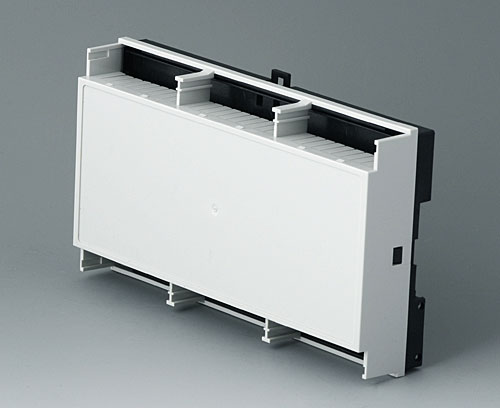

B6505229 RAILTEC B, 9 modules, Vers. low profile

B6505229

RAILTEC B, 9 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6505229

RAILTEC B, 9 modules, Vers. low profile
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
157,5x89,6x31,25mm

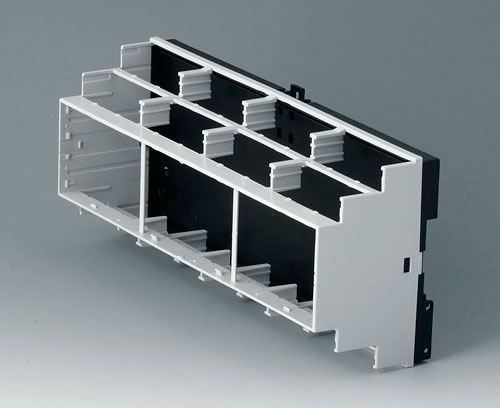

B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zavřít

B6506121

RAILTEC B, 12 modules, Vers. VI
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

Customising options for B6608141

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PC (UL 94 V-0)
Barva
light grey
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1,5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
