B6803114 Terminal guards, with holes, 7.5 & 7.62
Posunout

B6803114

Terminal guards, with holes, 7.5 & 7.62

Easy assembly through snap-in installation of the case parts.

Version

8 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply

1 piece

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B6803114

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options

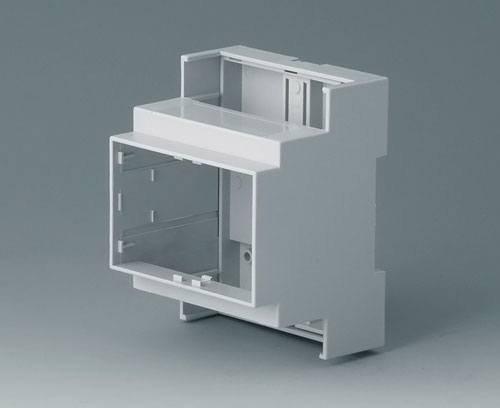

B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zavřít

B6703100

RAILTEC C, 4 modules, Vers. I
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey
71x90x58mm

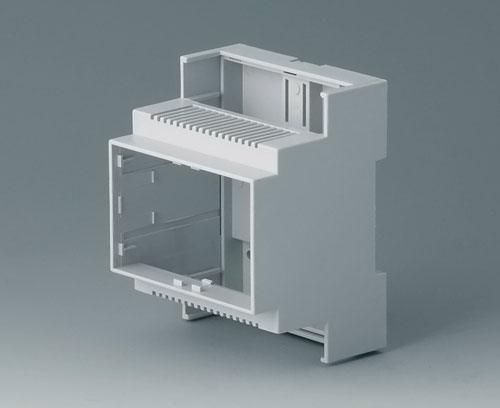

B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Zavřít

B6703102

RAILTEC C, 4 modules, Vers. II
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey
71x90x58mm

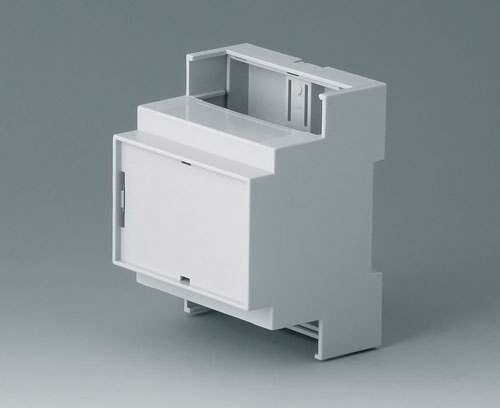

B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zavřít

B6703106

RAILTEC C, 4 modules, Vers. IV
Produkt byl přidán do Vašeho košíku.
PC (UL 94 V-0)
light grey
71x90x58mm

Customising options for B6803114

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PC (UL 94 V-0)
Barva
light grey
Standards
RoHS compliant
REACH compliant
Pitch
7.5 & 7.62 mm
Poles
8
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
