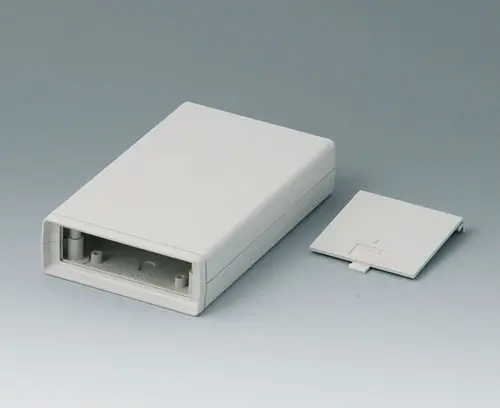

A9408638 SHELL-TYPE CASES V 155, Vers. V
Posunout

A9408638

SHELL-TYPE CASES V 155, Vers. V

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply

1 top and base part, battery compartment lid, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9408638

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory to complete

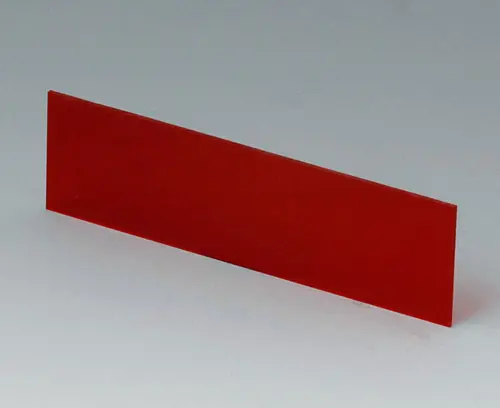

A9108113 Front / rear panel V, O 155

A9108113

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Zavřít

A9108113

Front / rear panel V, O 155
Produkt byl přidán do Vašeho košíku.
Acrylglas
red transparent
81,9x23,6x1mm

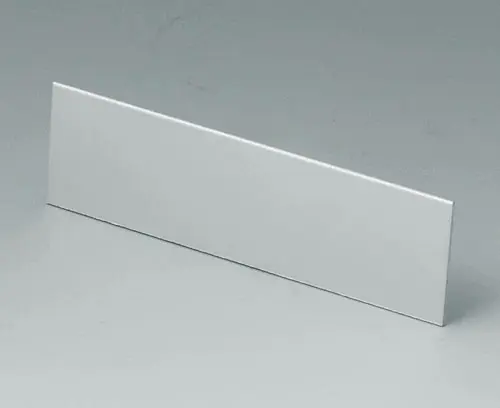

A9109111 Front / rear panel V, O 155

A9109111

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Zavřít

A9109111

Front / rear panel V, O 155
Produkt byl přidán do Vašeho košíku.
Aluminium
matt anodised
81,9x23,6x1mm

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zavřít

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.

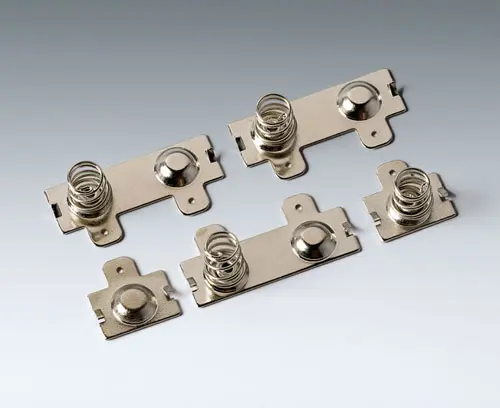

A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Zavřít

A9190013

Set of battery clips, 4 x AA
Produkt byl přidán do Vašeho košíku.
Steel
nickel-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Zavřít

A9250250

Battery spacer
Produkt byl přidán do Vašeho košíku.
PE foam
50x25x4mm

Accessory "protection"

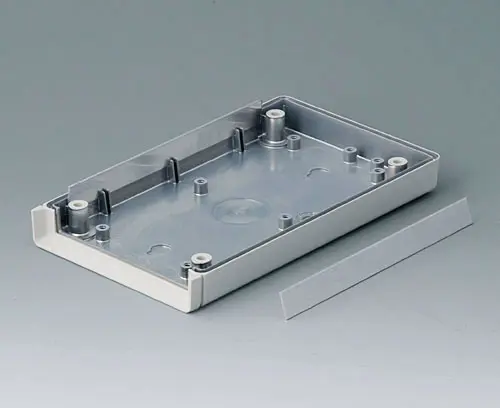

A9108120 Contact-strips V, O, G 155

A9108120

Contact-strips V, O, G 155 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Zavřít

A9108120

Contact-strips V, O, G 155
Produkt byl přidán do Vašeho košíku.
Aluminium

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zavřít

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for A9408638

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
95 mm
Depth
158 mm
Height
33 mm
PCB length, base
83 mm
PCB width, base
77 mm
PCB length, top
143 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 065 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
145 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
