A9413440 SHELL-TYPE CASES O 190, Vers. I
Posunout

A9413440

SHELL-TYPE CASES O 190, Vers. I

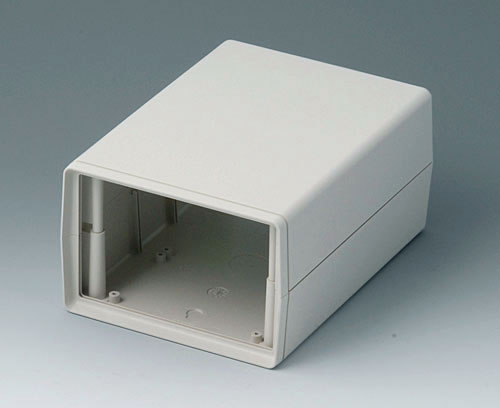

Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9413440

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory to complete

A9113223 Front / rear panel V, O 190

A9113223

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

Zavřít

A9113223

Front / rear panel V, O 190
Produkt byl přidán do Vašeho košíku.
Acrylglas
red transparent
124,2x79,6x1,5mm
A9114221 Front / rear panel V, O 190

A9114221

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

Zavřít

A9114221

Front / rear panel V, O 190
Produkt byl přidán do Vašeho košíku.
Aluminium
matt anodised
124,2x79,6x1,5mm

Accessory "protection"

A9113150 Contact-strips V, O, G 190

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Zavřít

A9113150

Contact-strips V, O, G 190
Produkt byl přidán do Vašeho košíku.
Aluminium

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Zavřít

A9204108

Wall mounting brackets
Produkt byl přidán do Vašeho košíku.
PA 6
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Zavřít

B1360048

Wall suspension elements
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for A9413440

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
138 mm
Depth
190 mm
Height
91 mm
PCB length, base
173 mm
PCB width, base
118 mm
PCB length, top
173 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 693 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
290 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
