B4608207 SMART-CONTROL S, Vers. II
Posunout

B4608207

SMART-CONTROL S, Vers. II

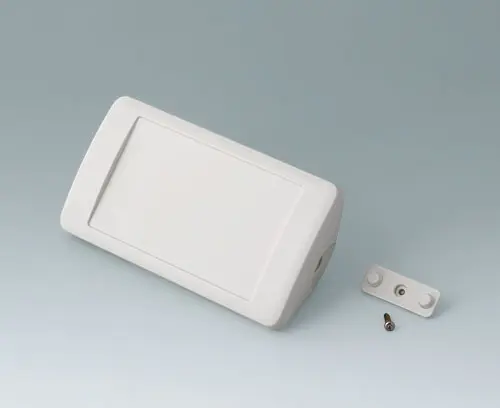

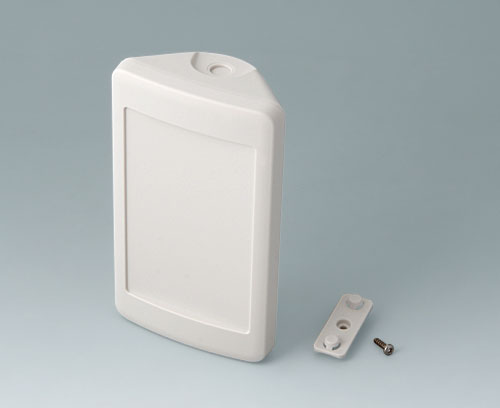

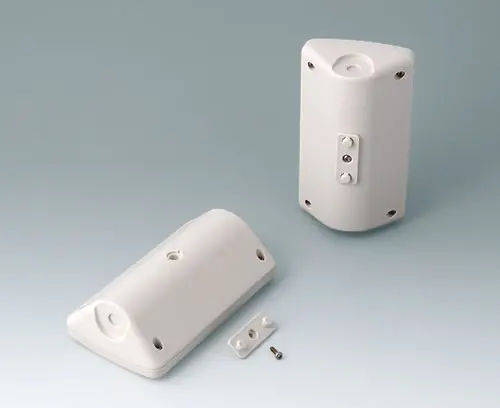

Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Case-top with recessed operating area

Supply

Top and bottom parts, assembly kit incl. universal adapter

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B4608207

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "station"

B4705207 Desktop stand set

B4705207

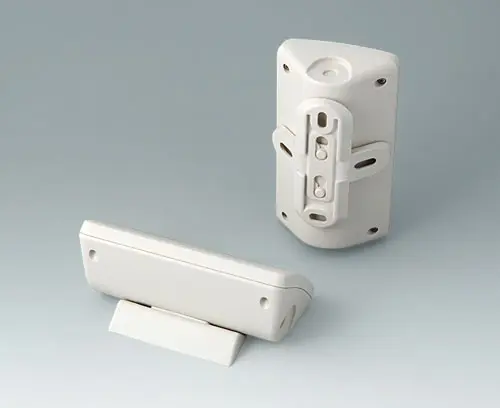

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Zavřít

B4705207

Desktop stand set
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)

Accessory "protection"

B4708920 Seal S

B4708920

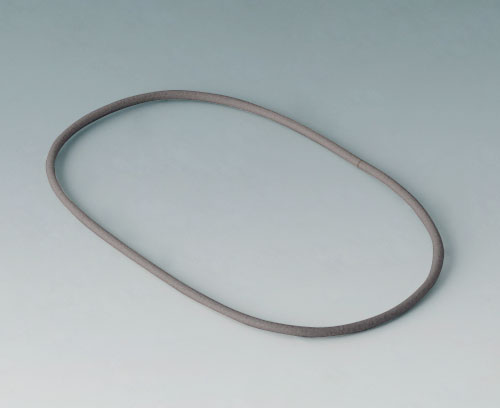

Seal S Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zavřít

B4708920

Seal S
Produkt byl přidán do Vašeho košíku.

Accessory "wall/holder"

B4705907 Wall suspension element

B4705907

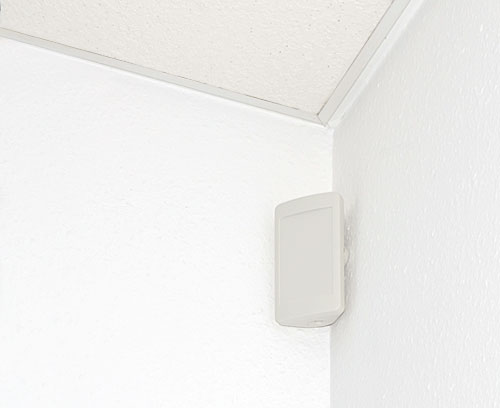

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

Zavřít

B4705907

Wall suspension element
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)

Accessory "screws"

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produkt byl přidán do Vašeho košíku.
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T08

Torx T8 screwdriver
Produkt byl přidán do Vašeho košíku.

Customising options for B4608207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Příklady aplikací
  • Kupní data
Materiál
ASA+PC (UL 94 V-0)
Třída produktu
IP 55 opt.
Necessary accessories: sealing, IP 40
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
142 mm
Width
81 mm
Height
46 mm
PCB length, base
120 mm
PCB width, base
58 mm
PCB length, top
128 mm
PCB width, top
68 mm
Keypad length
103 mm
Keypad width
63 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
109 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
