A9052127 SOFT-CASE L
Posunout

A9052127

SOFT-CASE L

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version

With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply

Top and bottom part, battery compartment lid, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9052127

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "intermediate ring"

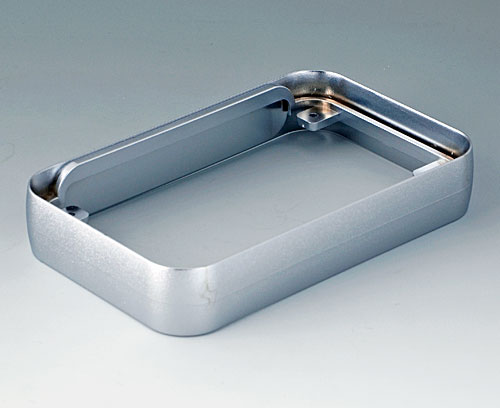

A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Zavřít

A9152011

Intermediate ring L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
matt chromed
76x120x21mm

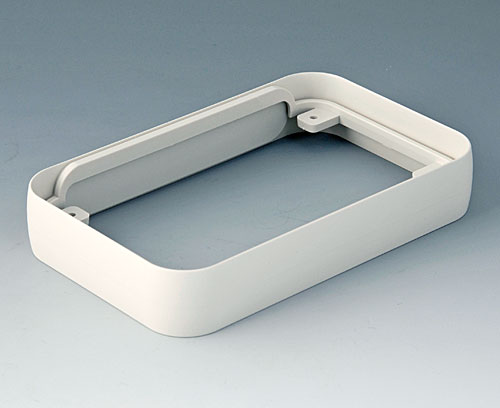

A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zavřít

A9152017

Intermediate ring L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm

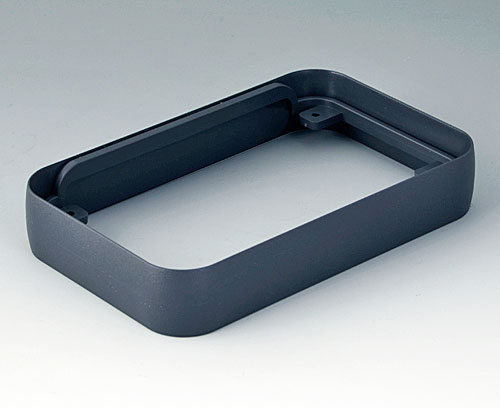

A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zavřít

A9152018

Intermediate ring L
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
76x120x21mm
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zavřít

A9152118

Intermediate protection ring L
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
volcano
76x120x21mm
A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Zavřít

A9152219

Intermediate ring L
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm

Accessory "battery"

A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Zavřít

A9174006

Set of battery clips, 1 x 9 V
Produkt byl přidán do Vašeho košíku.
Steel
tin-plated

Accessory "wall/holder"

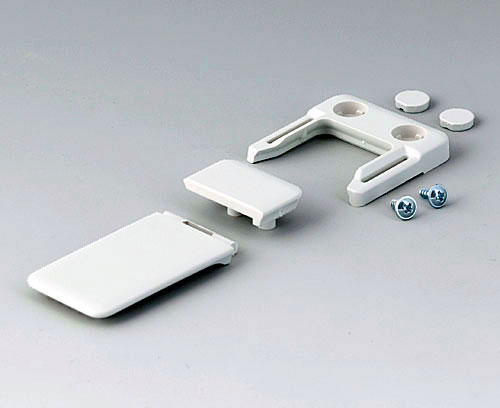

A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Zavřít

A9152047

Combi-Clip
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
45x27mm

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Zavřít

A9100001

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano
A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Zavřít

A9152047

Combi-Clip
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
45x27mm

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9152057

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9052127

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Třída produktu
IP 40
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
73 mm
Width
117 mm
Height
24 mm
PCB length, base
23 mm
PCB width, base
108 mm
PCB length, top
63 mm
PCB width, top
108 mm
Keypad length
51,5 mm
Keypad width
77,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 819 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
75 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
