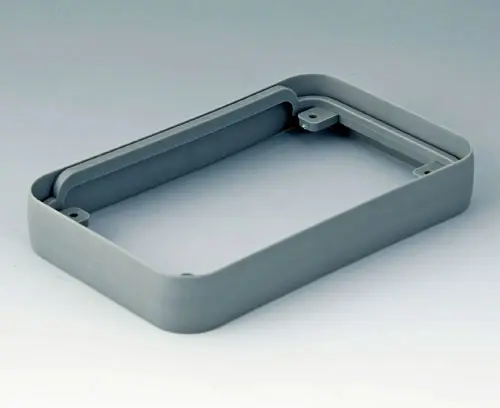

A9151118 Intermediate protection ring M
Posunout

A9151118

Intermediate protection ring M

Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply

1 intermediate ring

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9151118

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options

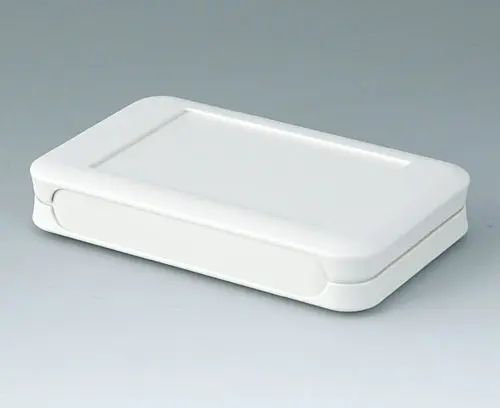

A9051107 SOFT-CASE M

A9051107

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9051107

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 54 opt., IP 40

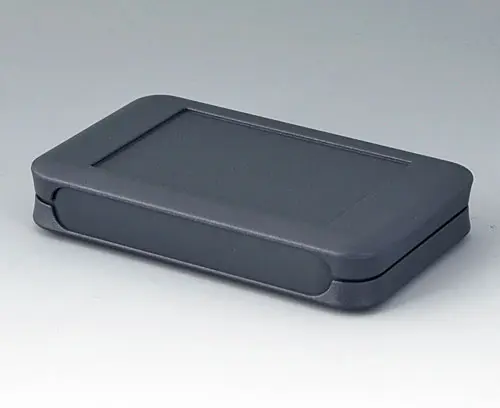

A9051108 SOFT-CASE M

A9051108

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9051108

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
65x105x19mm
IP 54 opt., IP 40
A9051117 SOFT-CASE M

A9051117

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9051117

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 40

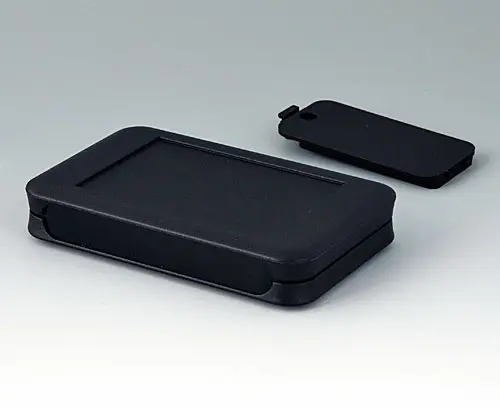

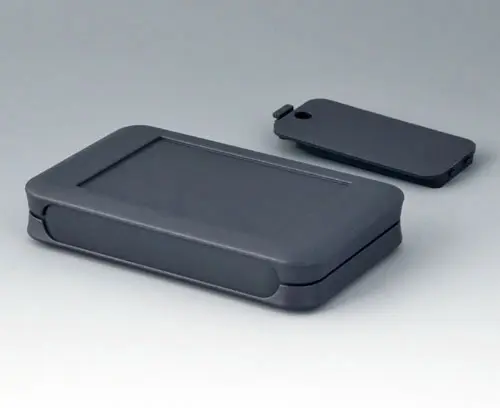

A9051118 SOFT-CASE M

A9051118

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9051118

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
65x105x19mm
IP 40

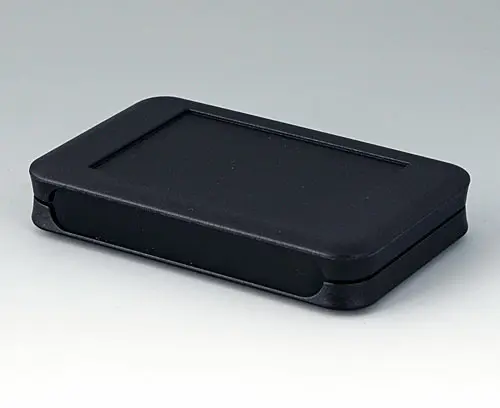

A9051209 SOFT-CASE M

A9051209

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9051209

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 54 opt., IP 40
A9051219 SOFT-CASE M

A9051219

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9051219

SOFT-CASE M
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 40

Customising options for A9151118

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
SEBS (TPE)
Barva
volcano
Standards
RoHS compliant
REACH compliant
Length
68 mm
Width
108 mm
Height
16 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 160 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
13 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
