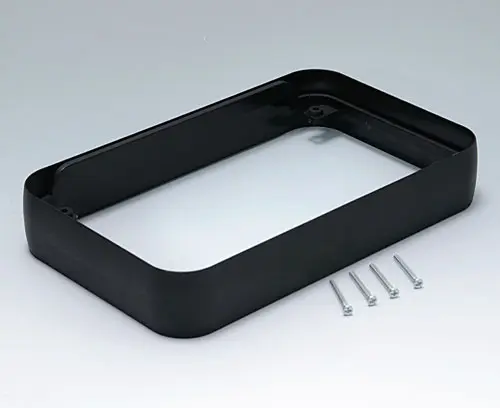

A9153219 Intermediate ring XL
Posunout

A9153219

Intermediate ring XL

For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply

1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9153219

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • To be used for
  • View Customising Options
A9053107 SOFT-CASE XL

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9053107

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053108 SOFT-CASE XL

A9053108

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9053108

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
92x150x28mm
IP 40
A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9053117

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053118 SOFT-CASE XL

A9053118

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9053118

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
lava
92x150x28mm
IP 40
A9053209 SOFT-CASE XL

A9053209

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Zavřít

A9053209

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40
A9053219 SOFT-CASE XL

A9053219

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

A9053219

SOFT-CASE XL
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40

Customising options for A9153219

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PMMA (IR) (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Length
96 mm
Width
154 mm
Height
26 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 028 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
40 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
