C8017222 SOLID-BOX 175
Posunout

C8017222

SOLID-BOX 175

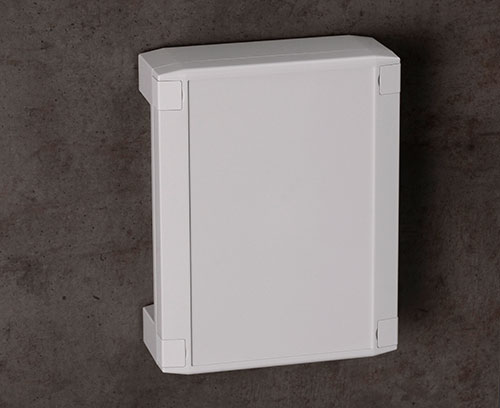

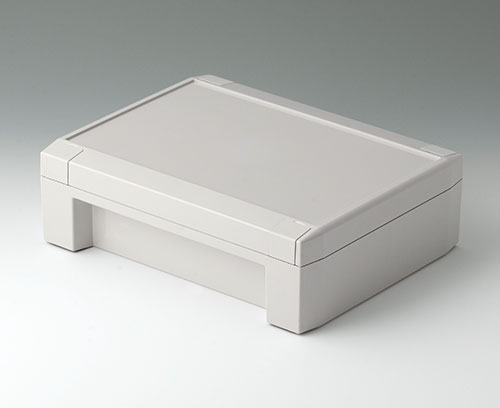

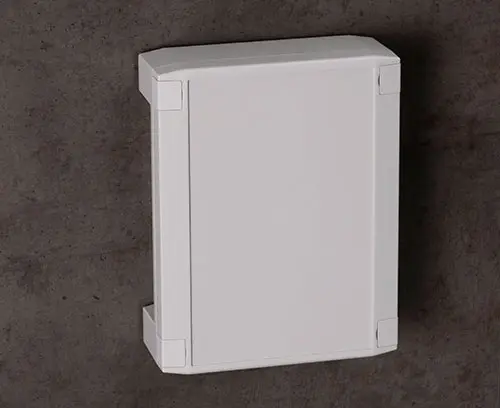

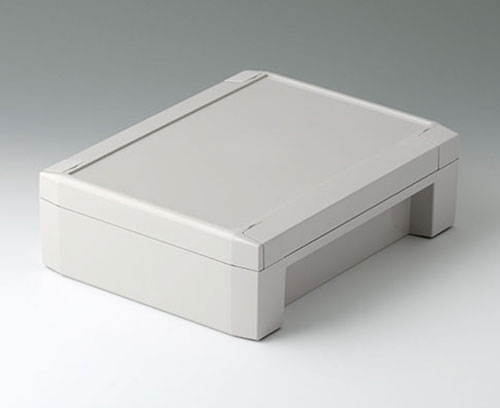

Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply

1 bottom and 1 top part with seal, 4 design trims, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro C8017222

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Zavřít

C2299031

Securing hinge for the cover
Produkt byl přidán do Vašeho košíku.
PP
natural-coloured
C8100360 Internal hinge set

C8100360

Internal hinge set Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.

Supply 2 hinges, 4 screws

Zavřít

C8100360

Internal hinge set
Produkt byl přidán do Vašeho košíku.

Accessory "screws"

A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produkt byl přidán do Vašeho košíku.
Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T10

Torx T10 screwdriver
Produkt byl přidán do Vašeho košíku.
A0399T20 Torx T20 screwdriver

A0399T20

Torx T20 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T20

Torx T20 screwdriver
Produkt byl přidán do Vašeho košíku.

Accessory

C8100188 Set of enclosure feet

C8100188

Set of enclosure feet Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.

Supply 4 enclosure feet

Zavřít

C8100188

Set of enclosure feet
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
volcano

Customising options for C8017222

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
PC+ABS (UL 94 V-0)
Třída produktu
IP 66, IP 67, IK 08
Barva
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
225 mm
Width
175 mm
Height
70 mm
PCB length, base
215 mm
PCB width, base
132 mm
PCB length, top
215 mm
PCB width, top
132 mm
Keypad length
208,8 mm
Keypad width
133 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 3 452 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
598 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
