B2903039 Holder M
Posunout

B2903039

Holder M

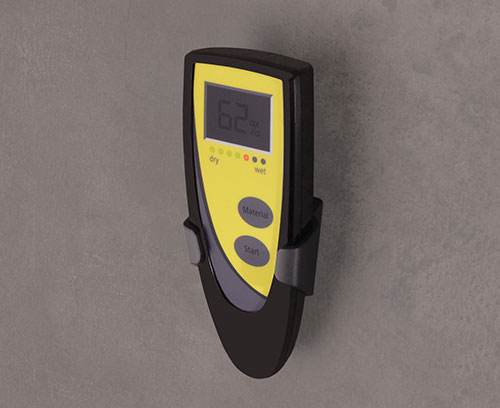

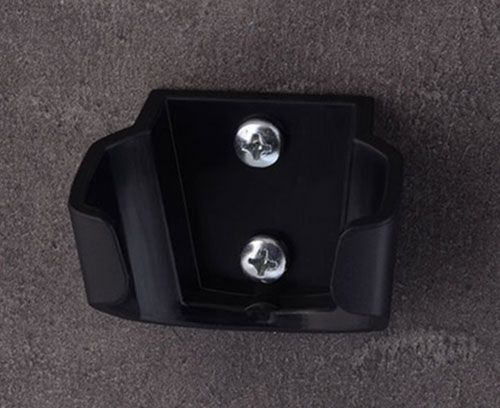

Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply

1 holder

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B2903039

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

System components to complete

B2803016 STYLE-CASE M

B2803016

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Zavřít

B2803016

STYLE-CASE M
Produkt byl přidán do Vašeho košíku.
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40

Accessory

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Zavřít

B2903031

Adhesive foil M
Produkt byl přidán do Vašeho košíku.

Customising options for B2903039

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Kupní data
Materiál
ASA (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
