B1055365 TOPTEC 123 F, Vers. I
Posunout

B1055365

TOPTEC 123 F, Vers. I

Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version

Without ventilations slots

Supply

1 case-top and base, 2 end panels

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro B1055365

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Zavřít

B1300017

Fastening element for DIN-Rails
Produkt byl přidán do Vašeho košíku.
PA 6
off-white RAL 9002
B1350028 Wall suspension element for Toptec 123

B1350028

Wall suspension element for Toptec 123 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Zavřít

B1350028

Wall suspension element for Toptec 123
Produkt byl přidán do Vašeho košíku.
PC+ABS (UL 94 V-0)
pebble grey RAL 7032

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Zavřít

A9199008

Set of screws
Produkt byl přidán do Vašeho košíku.

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9207150

Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent

Customising options for B1055365

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info

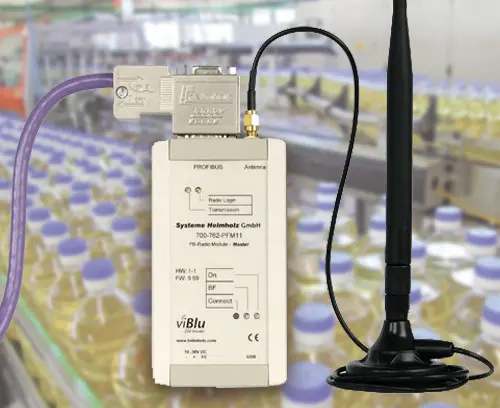

  • Příklady aplikací
  • Kupní data
Materiál
ABS (UL 94 HB)
Třída produktu
IP 40
Barva
Bottom and top part off-white RAL 9002,
End panels pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
123 mm
Width
68 mm
Height
30 mm
PCB length, base
116 mm
PCB width, base
60 mm
PCB length, top
96 mm
PCB width, top
60 mm
Keypad length
100,5 mm
Keypad width
48 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 655 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
67 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
