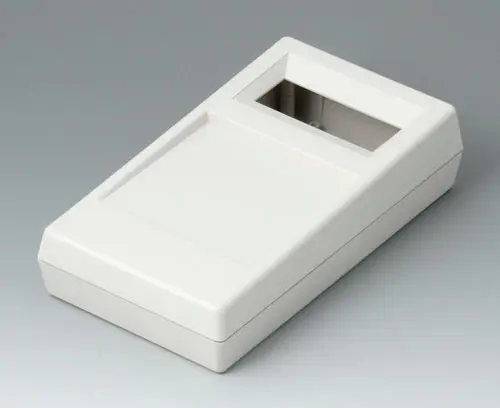

A9061117 HAND-HELD-BOX N, Vers. II
Posunout

A9061117

HAND-HELD-BOX N, Vers. II

Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version

Without battery compartment

Supply

Top and base part, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9061117

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "protection"

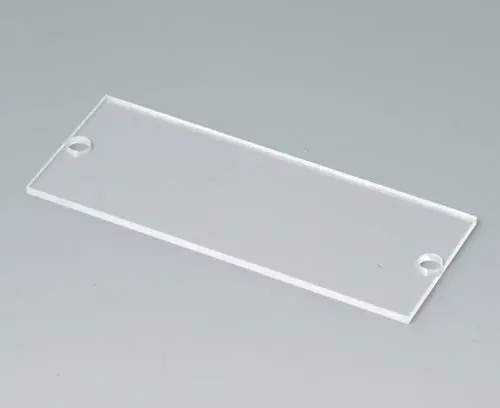

A9161004 Display window N

A9161004

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

Zavřít

A9161004

Display window N
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent
90x36x2mm

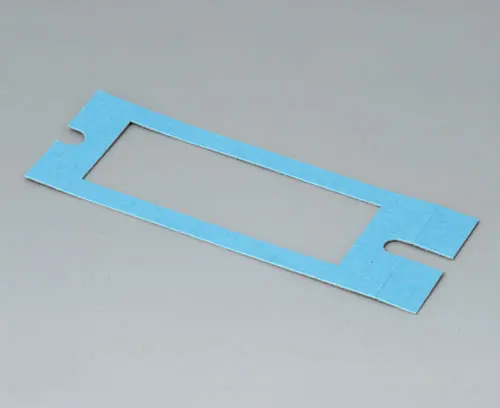

A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

Zavřít

A9161005

Adhesive foil N
Produkt byl přidán do Vašeho košíku.

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zavřít

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent

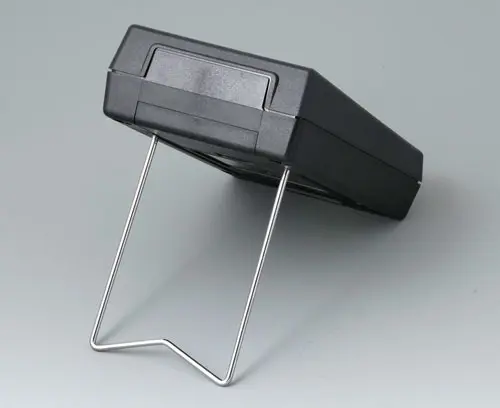

A9361009 Tilt foot bar

A9361009

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

Zavřít

A9361009

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
Steel
chromed

Customising options for A9061117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
180 mm
Width
100 mm
Height
44 mm
PCB length, base
168 mm
PCB width, base
91 mm
PCB length, top
169 mm
PCB width, top
91 mm
Display length, base
65 mm
Display width, base
23 mm
Keypad length
75,1 mm
Keypad width
80 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
163 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
