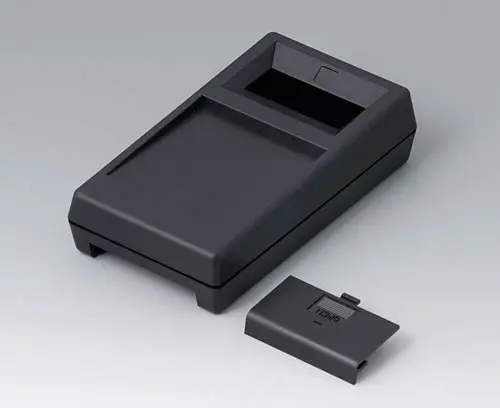

A9062019 HAND-HELD-BOX M, Vers. I
Posunout

A9062019

HAND-HELD-BOX M, Vers. I

Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version

With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply

Top and base part, battery compartment lid, assembly kit

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A9062019

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zavřít

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.

Accessory "protection"

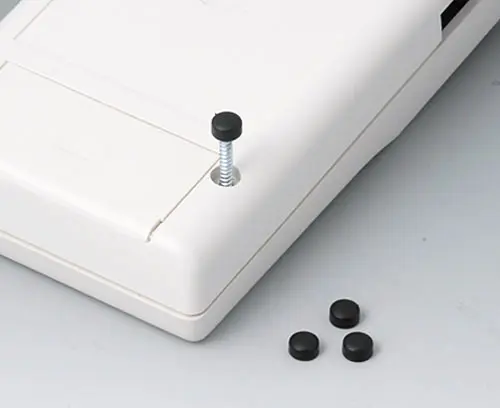

A9160002 Cover plug

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

Zavřít

A9160002

Cover plug
Produkt byl přidán do Vašeho košíku.
black RAL 9005

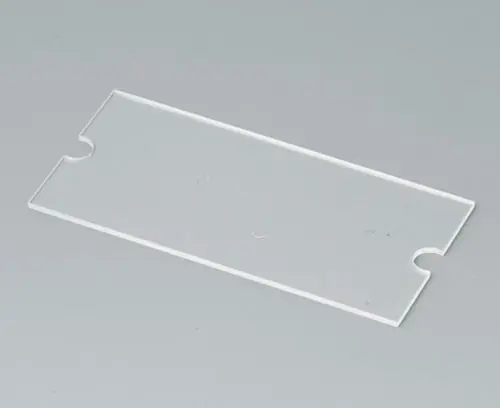

A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Zavřít

A9160005

Display window M
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent
60x30x1mm

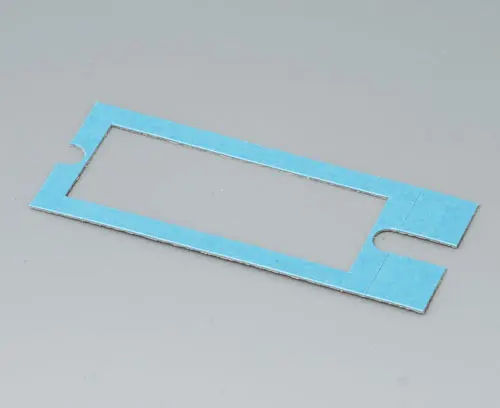

A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

Zavřít

A9160006

Adhesive foil P/M
Produkt byl přidán do Vašeho košíku.

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zavřít

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent

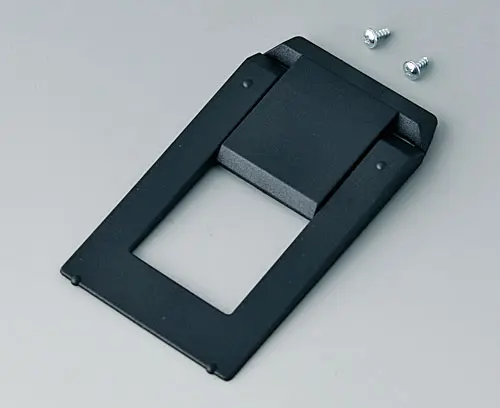

A9250809 Tilt foot bar

A9250809

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250809

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

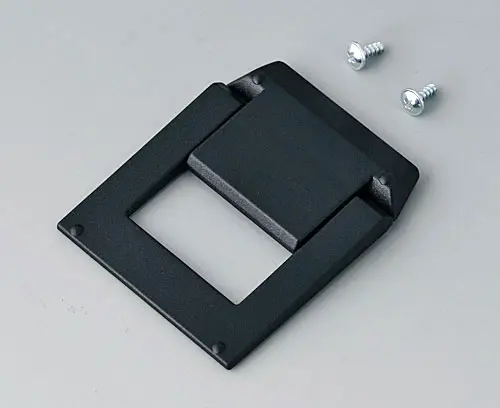

A9250819 Tilt foot bar

A9250819

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250819

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

Customising options for A9062019

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Length
145 mm
Width
80 mm
Height
38,5 mm
PCB length, base
102 mm
PCB width, base
71 mm
PCB length, top
106 mm
PCB width, top
71 mm
Display length, base
50 mm
Display width, base
20 mm
Keypad length
65 mm
Keypad width
64,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
98 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
