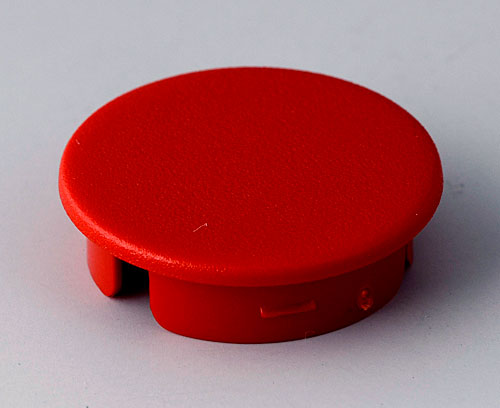

A4123002 Cover 23, without line

A4123002

Cover 23, without line

Suitable for round knobs 23. Cover simply to pin up.

Supply

1 cover

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

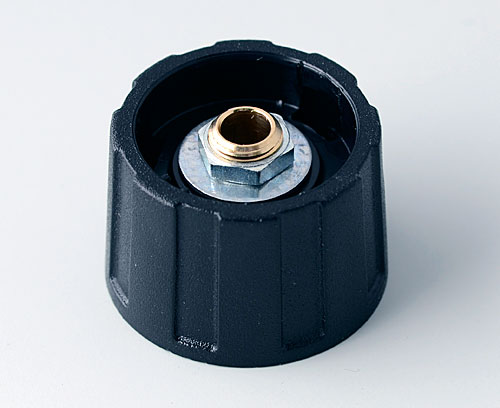

A2523040 ROUND KNOB 23, without line

A2523040

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Chiudi

A2523040

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 4mm
A2523060 ROUND KNOB 23, without line

A2523060

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523060

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 6mm
A2523068 ROUND KNOB 23, without line

A2523068

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523068

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 6mm

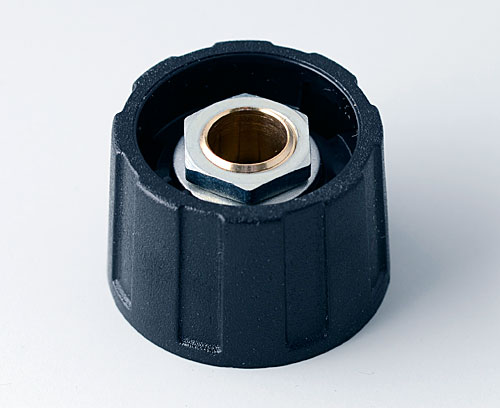

A2523630 ROUND KNOB 23, without line

A2523630

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523630

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 1/4″
A2523638 ROUND KNOB 23, without line

A2523638

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523638

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 1/4″
A2623040 ROUND KNOB 23, with line

A2623040

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking. Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Chiudi

A2623040

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 4mm
A2623060 ROUND KNOB 23, with line

A2623060

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2623060

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 6mm
A2623068 ROUND KNOB 23, with line

A2623068

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2623068

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 6mm

Customising options for A4123002

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
red RAL F12/0-10
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
