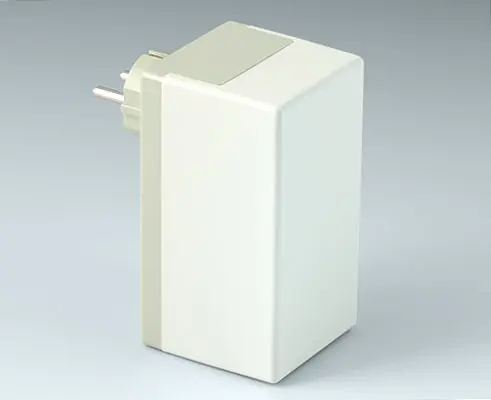

A9021665 PLUG CASE F / D, Vers. I

A9021665

PLUG CASE F / D, Vers. I

Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version

Without integrated socket, plug according to DIN 49441 R2

Supply

1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista
Stainless steel

Customising options for A9021665

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
PC+ABS (UL 94 V-0)
Bottom part with plug section
(UL 94 V-0)
Top part with integrated socket
Colore
Bottom part with plug section pebble grey RAL 7032,
Top part off-white RAL 9002
Standards
Length
120 mm
Width
65 mm
Height
65 mm
PCB length, base
96 mm
PCB width, base
58 mm
PCB length, top
95 mm
PCB width, top
58,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
150 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
