NET-BOX

Net-Box

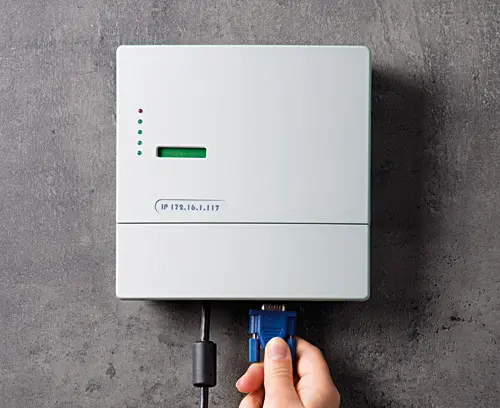

Elegante centralina di controllo

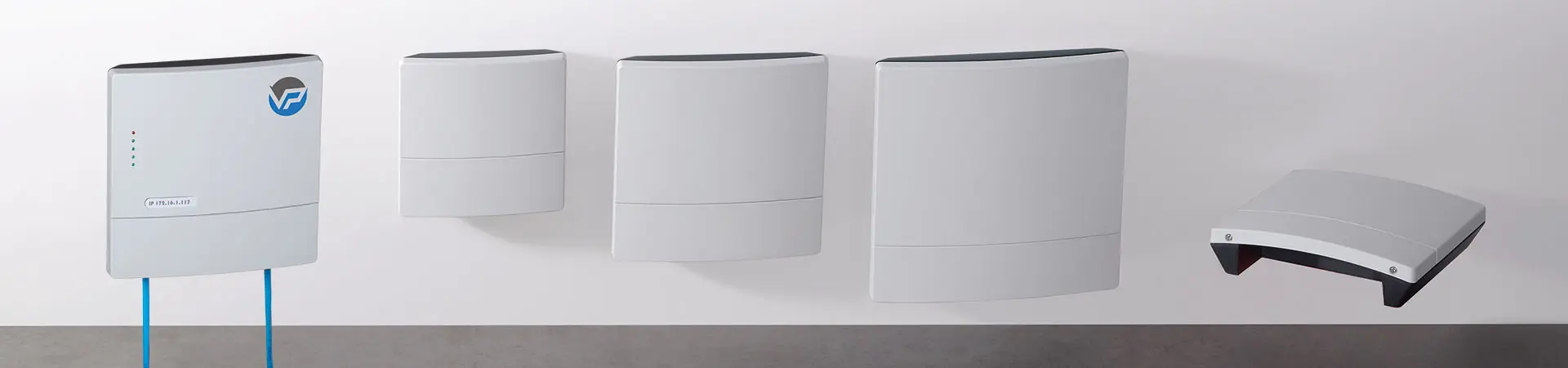

Moderna e con una raffinata forma arrotondata, ecco come si presenta la nuova serie di contenitori a muro NET-BOX.

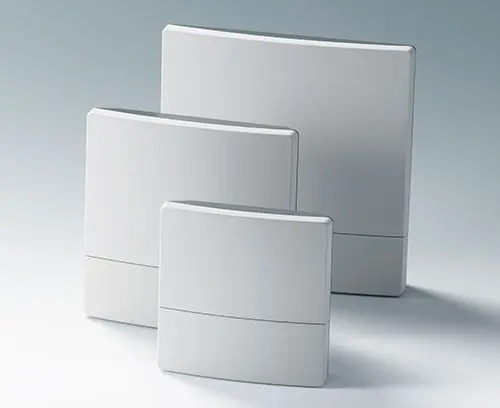

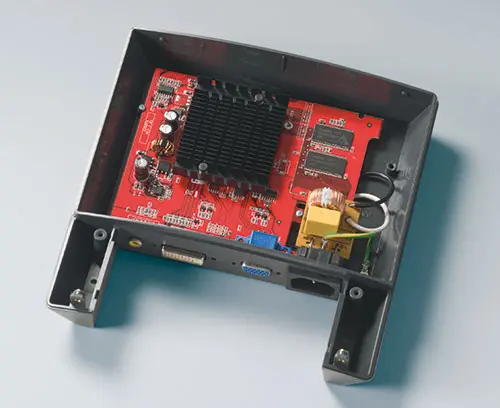

  • Tre misure con molto spazio per componenti elettronici e interfacce

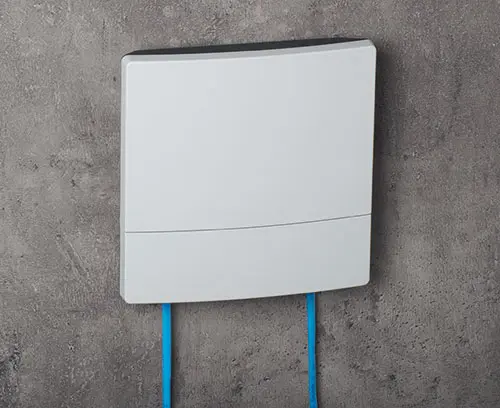

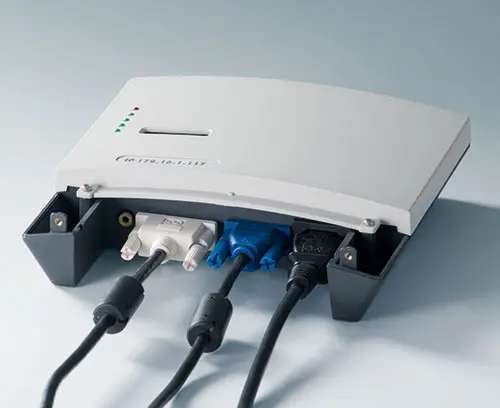

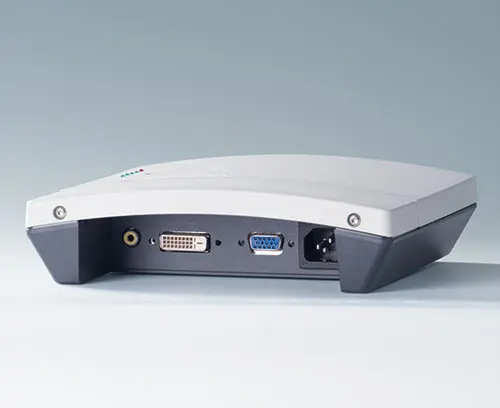

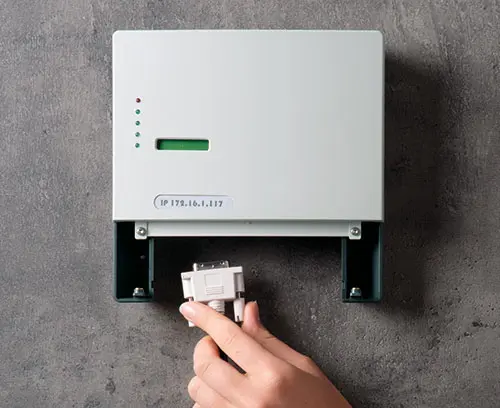

  • Viti e collegamenti per connettori nascosti

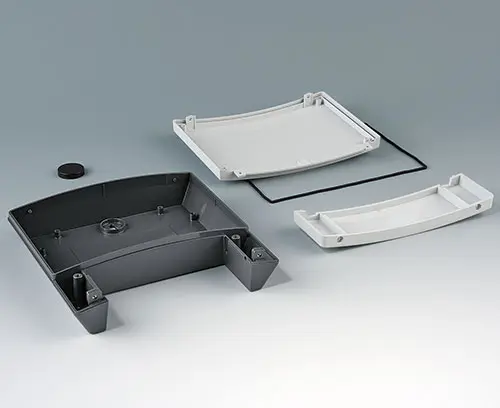

  • Materiale V0 di elevata qualità e grado di protezione opzionale IP 65 (set di guarnizioni disponibile come accessorio)
  • Vano componenti elettronici a tenuta con due livelli per schede

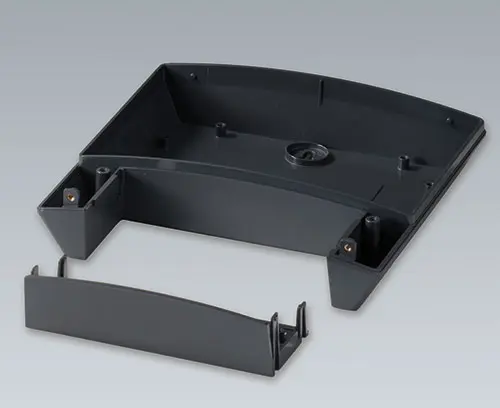

  • Copertura opzionale che chiude il contenitore verso il basso e consente il montaggio di un'altra scheda
  • Semplice sistema di montaggio su tre punti a filo della parete (versioni II già dotate di aperture nella parte inferiore)
  • Viti in acciaio inossidabile con sicuro azionamento Torx
  • I contenitori NET-BOX sono utilizzabili anche come contenitori da scrivania (piedini antiscivolo disponibili come accessori)

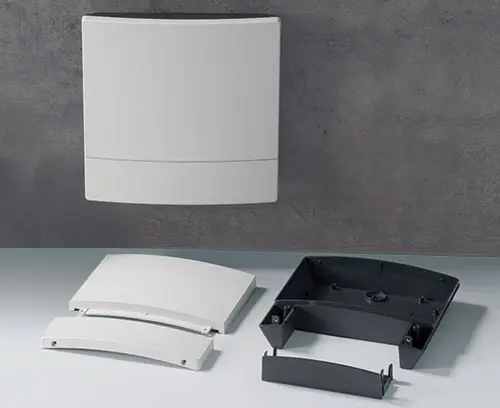

  • Contenitore composto da tre parti, cioè parte inferiore, parte superiore e placca
  • Video

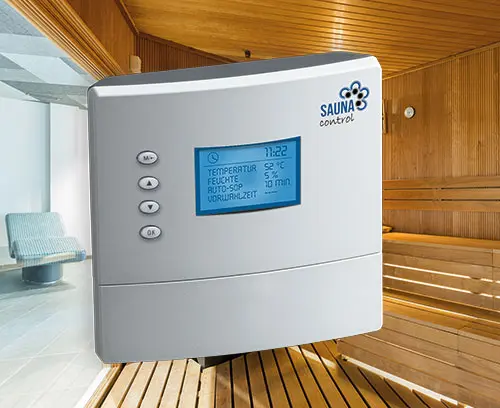

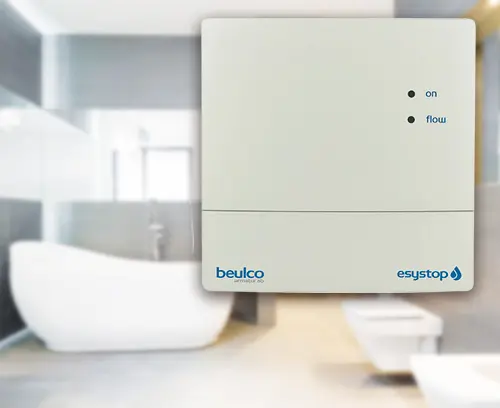

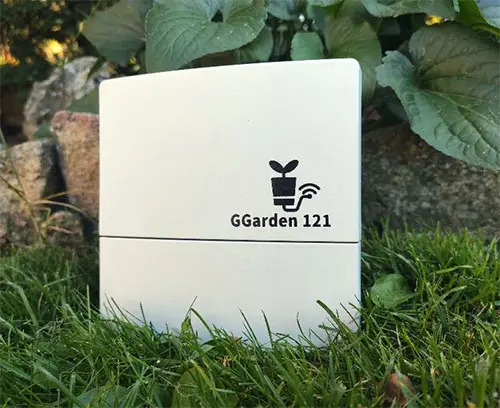

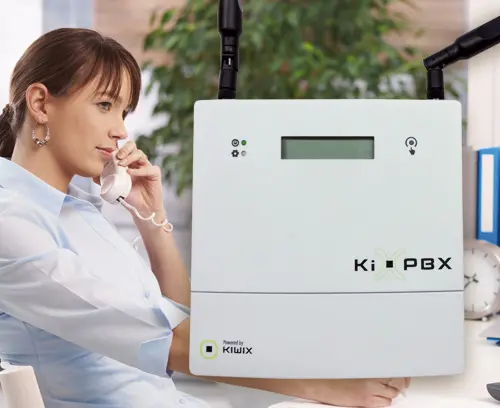

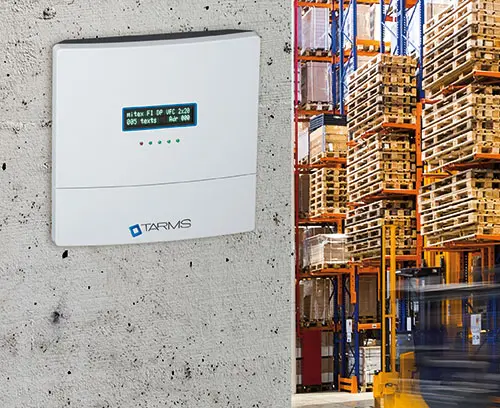

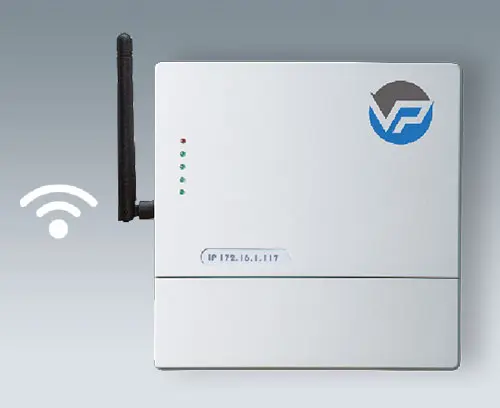

  • Esempi di applicazione

Application fields

  • Gestione degli impianti tecnici di edifici
  • Centraline di controllo
  • IoT/IIoT

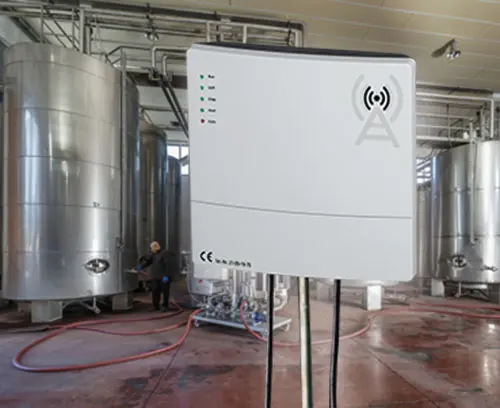

  • Smart Factory
  • Industrie 4.0

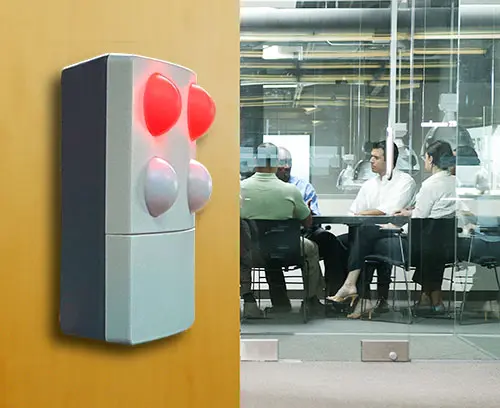

  • Impianti di monitoraggio e controllo degli accessi
  • Sistemi di rilevamento dati
  • Periferiche di computer
  • Metrologia e tecnica di regolazione
  • Tecnica medicale
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente
B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3214101

NET-BOX 140, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46,5mm
IP 65 opt., IP 40
B3214201 NET-BOX 140, Vers. II

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3214201

NET-BOX 140, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46,5mm
IP 65 opt.
B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3218101

NET-BOX 180, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48,5mm
IP 65 opt., IP 40
B3218201 NET-BOX 180, Vers. II

B3218201

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3218201

NET-BOX 180, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48,5mm
IP 65 opt.
B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3222101

NET-BOX 220, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50,5mm
IP 65 opt., IP 40
B3222201 NET-BOX 220, Vers. II

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Chiudi

B3222201

NET-BOX 220, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50,5mm
IP 65 opt.
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent

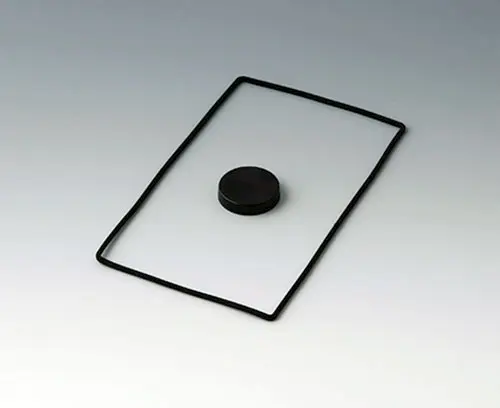

B3314159 Sealing kit 140

B3314159

Sealing kit 140 Application: for increasing the protection class, of NET-BOX140.

Supply 1 sealing kit

Chiudi

B3314159

Sealing kit 140
Prodotto aggiunto alla lista
Silicone
black
B3314918 Infill cover 140

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Chiudi

B3314918

Infill cover 140
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava

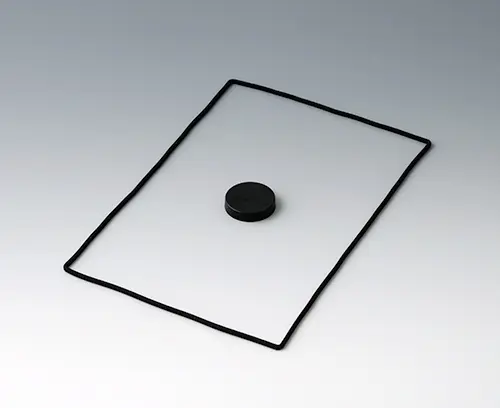

B3318159 Sealing kit 180

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

Chiudi

B3318159

Sealing kit 180
Prodotto aggiunto alla lista
Silicone
black
B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Chiudi

B3318918

Infill cover 180
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava

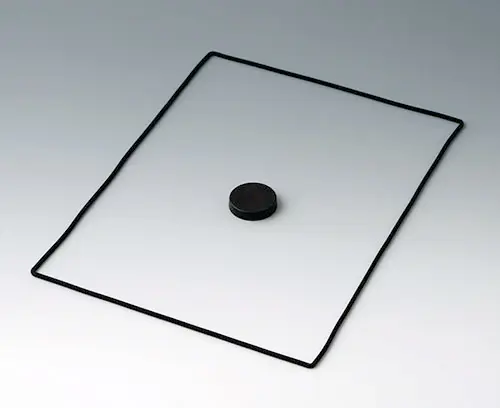

B3322159 Sealing kit 220

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

Chiudi

B3322159

Sealing kit 220
Prodotto aggiunto alla lista
Silicone
black
B3322918 Infill cover 220

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Chiudi

B3322918

Infill cover 220
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava

Opzioni prodotto per Net-Box

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
