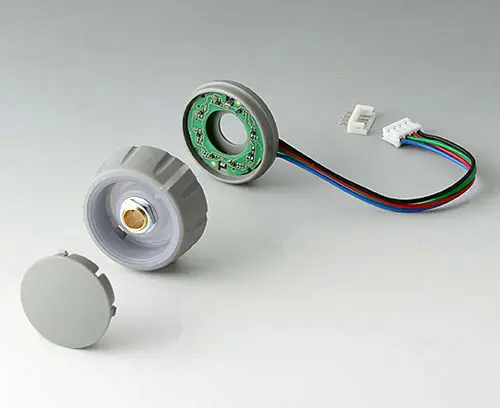

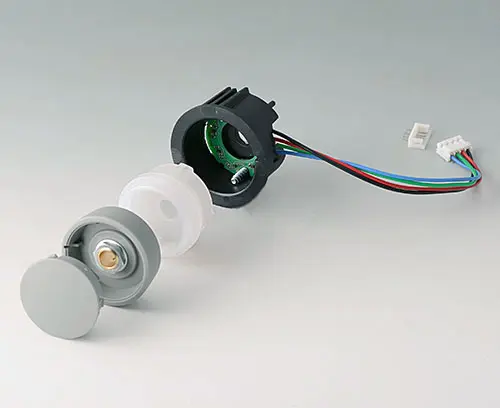

B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply

1 LED illumination kit (RGB backlight)

  • Usato per
B7136061 CONTROL-KNOBS 36, optional illumination

B7136061

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7136061

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
nero
36x14,7mm
Foro assiale 6mm
B7136063 CONTROL-KNOBS 36, optional illumination

B7136063

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7136063

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
volcano
36x14,7mm
Foro assiale 6mm
B7136631 CONTROL-KNOBS 36, optional illumination

B7136631

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7136631

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
nero
36x14,7mm
Foro assiale 1/4″
B7136633 CONTROL-KNOBS 36, optional illumination

B7136633

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7136633

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
volcano
36x14,7mm
Foro assiale 1/4″
B7236061 CONTROL-KNOBS 36, optional illumination

B7236061

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7236061

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
nero
36x14,7mm
Foro assiale 6mm
B7236063 CONTROL-KNOBS 36, optional illumination

B7236063

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7236063

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
volcano
36x14,7mm
Foro assiale 6mm
B7236631 CONTROL-KNOBS 36, optional illumination

B7236631

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7236631

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
nero
36x14,7mm
Foro assiale 1/4″
B7236633 CONTROL-KNOBS 36, optional illumination

B7236633

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7236633

CONTROL-KNOBS 36, optional illumination
Prodotto aggiunto alla lista
PC
volcano
36x14,7mm
Foro assiale 1/4″
B7536208 Base 36

B7536208

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536208

Base 36
Prodotto aggiunto alla lista
PA 6
volcano
B7536209 Base 36

B7536209

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536209

Base 36
Prodotto aggiunto alla lista
PA 6
nero
B8033068 STAR-KNOBS 33

B8033068

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8033068

STAR-KNOBS 33
Prodotto aggiunto alla lista
PA 6
volcano
33x14mm
Foro assiale 6mm
B8033069 STAR-KNOBS 33

B8033069

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8033069

STAR-KNOBS 33
Prodotto aggiunto alla lista
PA 6
nero
33x14mm
Foro assiale 6mm
B8033638 STAR-KNOBS 33

B8033638

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8033638

STAR-KNOBS 33
Prodotto aggiunto alla lista
PA 6
volcano
33x14mm
Foro assiale 1/4″
B8033639 STAR-KNOBS 33

B8033639

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8033639

STAR-KNOBS 33
Prodotto aggiunto alla lista
PA 6
nero
33x14mm
Foro assiale 1/4″
B8041068 STAR-KNOBS 41

B8041068

STAR-KNOBS 41 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8041068

STAR-KNOBS 41
Prodotto aggiunto alla lista
PA 6
volcano
41x14mm
Foro assiale 6mm
B8041069 STAR-KNOBS 41

B8041069

STAR-KNOBS 41 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8041069

STAR-KNOBS 41
Prodotto aggiunto alla lista
PA 6
nero
41x14mm
Foro assiale 6mm
B8133068 STAR-KNOBS 33, with knurls

B8133068

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8133068

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PA 6
volcano
33x14mm
Foro assiale 6mm
B8133069 STAR-KNOBS 33, with knurls

B8133069

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8133069

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PA 6
nero
33x14mm
Foro assiale 6mm
B8133638 STAR-KNOBS 33, with knurls

B8133638

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8133638

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PA 6
volcano
33x14mm
Foro assiale 1/4″
B8133639 STAR-KNOBS 33, with knurls

B8133639

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8133639

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PA 6
nero
33x14mm
Foro assiale 1/4″
B8141068 STAR-KNOBS 41, with knurls

B8141068

STAR-KNOBS 41, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8141068

STAR-KNOBS 41, with knurls
Prodotto aggiunto alla lista
PA 6
volcano
41x14mm
Foro assiale 6mm
B8141069 STAR-KNOBS 41, with knurls

B8141069

STAR-KNOBS 41, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8141069

STAR-KNOBS 41, with knurls
Prodotto aggiunto alla lista
PA 6
nero
41x14mm
Foro assiale 6mm
B8233061 STAR-KNOBS 33

B8233061

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233061

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
33x14mm
Foro assiale 6mm
B8233065 STAR-KNOBS 33

B8233065

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233065

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
33x14mm
Foro assiale 6mm
B8233066 STAR-KNOBS 33

B8233066

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233066

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
33x14mm
Foro assiale 6mm
B8233631 STAR-KNOBS 33

B8233631

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233631

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
33x14mm
Foro assiale 1/4″
B8233635 STAR-KNOBS 33

B8233635

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233635

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
33x14mm
Foro assiale 1/4″
B8233636 STAR-KNOBS 33

B8233636

STAR-KNOBS 33 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8233636

STAR-KNOBS 33
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
33x14mm
Foro assiale 1/4″
B8241061 STAR-KNOBS 41

B8241061

STAR-KNOBS 41 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8241061

STAR-KNOBS 41
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
41x14mm
Foro assiale 6mm
B8241065 STAR-KNOBS 41

B8241065

STAR-KNOBS 41 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8241065

STAR-KNOBS 41
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
41x14mm
Foro assiale 6mm
B8241066 STAR-KNOBS 41

B8241066

STAR-KNOBS 41 Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8241066

STAR-KNOBS 41
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
41x14mm
Foro assiale 6mm
B8333061 STAR-KNOBS 33, with knurls

B8333061

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333061

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
33x14mm
Foro assiale 6mm
B8333065 STAR-KNOBS 33, with knurls

B8333065

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333065

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
33x14mm
Foro assiale 6mm
B8333066 STAR-KNOBS 33, with knurls

B8333066

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333066

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
33x14mm
Foro assiale 6mm
B8333631 STAR-KNOBS 33, with knurls

B8333631

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333631

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
33x14mm
Foro assiale 1/4″
B8333635 STAR-KNOBS 33, with knurls

B8333635

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333635

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
33x14mm
Foro assiale 1/4″
B8333636 STAR-KNOBS 33, with knurls

B8333636

STAR-KNOBS 33, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8333636

STAR-KNOBS 33, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
33x14mm
Foro assiale 1/4″
B8341061 STAR-KNOBS 41, with knurls

B8341061

STAR-KNOBS 41, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8341061

STAR-KNOBS 41, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
41x14mm
Foro assiale 6mm
B8341065 STAR-KNOBS 41, with knurls

B8341065

STAR-KNOBS 41, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8341065

STAR-KNOBS 41, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
emerald
41x14mm
Foro assiale 6mm
B8341066 STAR-KNOBS 41, with knurls

B8341066

STAR-KNOBS 41, with knurls Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Version With knurls

Supply 1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

Chiudi

B8341066

STAR-KNOBS 41, with knurls
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
41x14mm
Foro assiale 6mm
B8633008 Cover 33

B8633008

Cover 33 Suitable for STAR-KNOB 33. Cover simply to pin up.

Supply 1 cover

Chiudi

B8633008

Cover 33
Prodotto aggiunto alla lista
PA 6
volcano
B8633009 Cover 33

B8633009

Cover 33 Suitable for STAR-KNOB 33. Cover simply to pin up.

Supply 1 cover

Chiudi

B8633009

Cover 33
Prodotto aggiunto alla lista
PA 6
nero
B8633108 Cover 33, with finger recess

B8633108

Cover 33, with finger recess Suitable for STAR-KNOB 33. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

B8633108

Cover 33, with finger recess
Prodotto aggiunto alla lista
PA 6
volcano
B8633109 Cover 33, with finger recess

B8633109

Cover 33, with finger recess Suitable for STAR-KNOB 33. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

B8633109

Cover 33, with finger recess
Prodotto aggiunto alla lista
PA 6
nero
B8641008 Cover 41

B8641008

Cover 41 Suitable for STAR-KNOB 41. Cover simply to pin up.

Supply 1 cover

Chiudi

B8641008

Cover 41
Prodotto aggiunto alla lista
PA 6
volcano
B8641009 Cover 41

B8641009

Cover 41 Suitable for STAR-KNOB 41. Cover simply to pin up.

Supply 1 cover

Chiudi

B8641009

Cover 41
Prodotto aggiunto alla lista
PA 6
nero
B8641108 Cover 41, with finger recess

B8641108

Cover 41, with finger recess Suitable for STAR-KNOB 41. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

B8641108

Cover 41, with finger recess
Prodotto aggiunto alla lista
PA 6
volcano
B8641109 Cover 41, with finger recess

B8641109

Cover 41, with finger recess Suitable for STAR-KNOB 41. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

B8641109

Cover 41, with finger recess
Prodotto aggiunto alla lista
PA 6
nero
B8733118 Assembly kit 33, flush fitting version

B8733118

Assembly kit 33, flush fitting version Flush-fitting version: For flush-fitting installation in the built-in version with an attractive transition from the knob to the front of the device. Suitable for knob diameter 33. Optional illumination possible only in conjunction with the translucent knob(colours diamond, ruby, emerald or sapphire).

Supply 1 assembly kit

Chiudi

B8733118

Assembly kit 33, flush fitting version
Prodotto aggiunto alla lista
PA 6
volcano
B8733119 Assembly kit 33, flush fitting version

B8733119

Assembly kit 33, flush fitting version Flush-fitting version: For flush-fitting installation in the built-in version with an attractive transition from the knob to the front of the device. Suitable for knob diameter 33. Optional illumination possible only in conjunction with the translucent knob(colours diamond, ruby, emerald or sapphire).

Supply 1 assembly kit

Chiudi

B8733119

Assembly kit 33, flush fitting version
Prodotto aggiunto alla lista
PA 6
nero
B8733201 Assembly kit 33, surface-mounted version

B8733201

Assembly kit 33, surface-mounted version Surface-Mounted version. For raised installation. Suitable for knob diameter 33. Optional illumination possible, please order LED illumination separately.

Supply 1 assembly kit

Chiudi

B8733201

Assembly kit 33, surface-mounted version
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
B8733206 Assembly kit 33, surface-mounted version

B8733206

Assembly kit 33, surface-mounted version Surface-Mounted version. For raised installation. Suitable for knob diameter 33. Optional illumination possible, please order LED illumination separately.

Supply 1 assembly kit

Chiudi

B8733206

Assembly kit 33, surface-mounted version
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
B8741118 Assembly kit 41, flush fitting version

B8741118

Assembly kit 41, flush fitting version Flush-fitting version: For flush-fitting installation in the built-in version with an attractive transition from the knob to the front of the device. Suitable for knob diameter 41. Optional illumination possible only in conjunction with the translucent knob (colours diamond, ruby, emerald or sapphire).

Supply 1 assembly kit

Chiudi

B8741118

Assembly kit 41, flush fitting version
Prodotto aggiunto alla lista
PA 6
volcano
B8741119 Assembly kit 41, flush fitting version

B8741119

Assembly kit 41, flush fitting version Flush-fitting version: For flush-fitting installation in the built-in version with an attractive transition from the knob to the front of the device. Suitable for knob diameter 41. Optional illumination possible only in conjunction with the translucent knob (colours diamond, ruby, emerald or sapphire).

Supply 1 assembly kit

Chiudi

B8741119

Assembly kit 41, flush fitting version
Prodotto aggiunto alla lista
PA 6
nero
B8741201 Assembly kit 41, surface-mounted version

B8741201

Assembly kit 41, surface-mounted version Surface-Mounted version. For raised installation. Suitable for knob diameter 41. Optional illumination possible, please order LED illumination separately.

Supply 1 assembly kit

Chiudi

B8741201

Assembly kit 41, surface-mounted version
Prodotto aggiunto alla lista
PC (UL 94 HB)
diamond
B8741206 Assembly kit 41, surface-mounted version

B8741206

Assembly kit 41, surface-mounted version Surface-Mounted version. For raised installation. Suitable for knob diameter 41. Optional illumination possible, please order LED illumination separately.

Supply 1 assembly kit

Chiudi

B8741206

Assembly kit 41, surface-mounted version
Prodotto aggiunto alla lista
PC (UL 94 HB)
saphire
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 64 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
2 g
Customs tariff number
(OKW product)
85312020
Country of manufacture
Germany
