B7546208 Base 46

B7546208

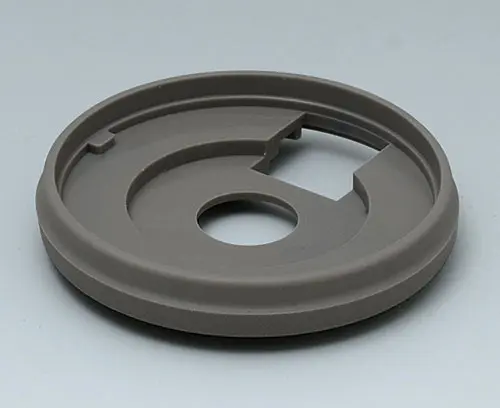

Base 46

Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:

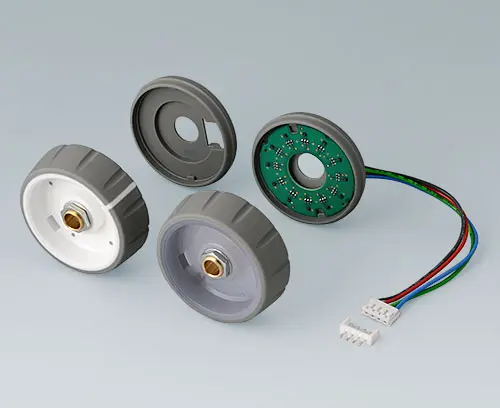

- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply

1 base

  • Componenti adatti

System components to complete

B7146061 CONTROL-KNOBS 46, optional illumination

B7146061

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7146061

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 6mm
B7146062 CONTROL-KNOBS 46

B7146062

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7146062

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 6mm
B7146063 CONTROL-KNOBS 46, optional illumination

B7146063

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7146063

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 6mm
B7146064 CONTROL-KNOBS 46

B7146064

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7146064

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 6mm
B7146631 CONTROL-KNOBS 46, optional illumination

B7146631

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7146631

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 1/4″
B7146632 CONTROL-KNOBS 46

B7146632

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7146632

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 1/4″
B7146633 CONTROL-KNOBS 46, optional illumination

B7146633

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7146633

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 1/4″
B7146634 CONTROL-KNOBS 46

B7146634

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7146634

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 1/4″
B7246061 CONTROL-KNOBS 46, optional illumination

B7246061

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7246061

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 6mm
B7246062 CONTROL-KNOBS 46

B7246062

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7246062

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 6mm
B7246063 CONTROL-KNOBS 46, optional illumination

B7246063

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7246063

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 6mm
B7246064 CONTROL-KNOBS 46

B7246064

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7246064

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 6mm
B7246631 CONTROL-KNOBS 46, optional illumination

B7246631

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7246631

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 1/4″
B7246632 CONTROL-KNOBS 46

B7246632

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7246632

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
nero
46x14,7mm
Foro assiale 1/4″
B7246633 CONTROL-KNOBS 46, optional illumination

B7246633

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Chiudi

B7246633

CONTROL-KNOBS 46, optional illumination
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 1/4″
B7246634 CONTROL-KNOBS 46

B7246634

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Chiudi

B7246634

CONTROL-KNOBS 46
Prodotto aggiunto alla lista
PC
volcano
46x14,7mm
Foro assiale 1/4″

Accessory

B7546002 LED illumination kit, 12 LEDs (RGB backlight)

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Chiudi

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
Prodotto aggiunto alla lista
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
volcano
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 60 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
