A9107508 Station L

A9107508

Station L

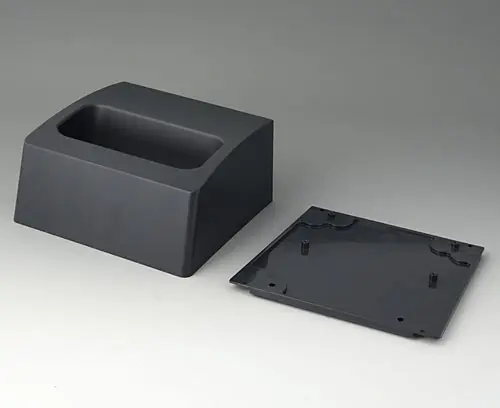

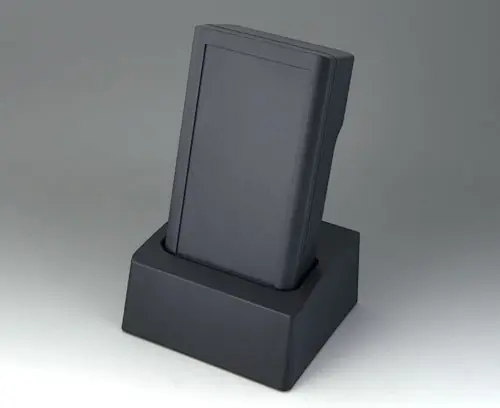

Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply

Station with bottom panel, rubber feet, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A9007108 DATEC-COMPACT L

A9007108

DATEC-COMPACT L 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit
