A9107627 Holder L

A9107627

Holder L

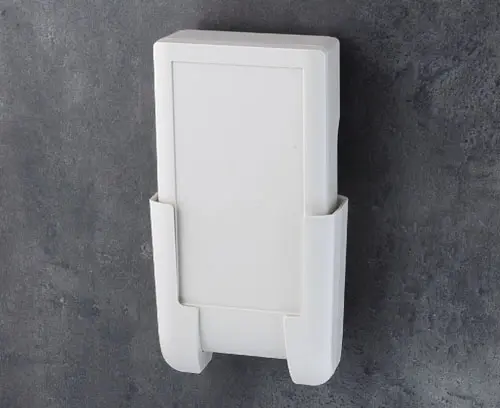

Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply

1 holder

  • Usato per
  • Modifiche specifiche del cliente
A9007107 DATEC-COMPACT L

A9007107

DATEC-COMPACT L 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007107

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 65
A9007117 DATEC-COMPACT L

A9007117

DATEC-COMPACT L 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007117

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 41
A9007207 DATEC-COMPACT L

A9007207

DATEC-COMPACT L 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007207

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 65
A9007217 DATEC-COMPACT L

A9007217

DATEC-COMPACT L 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007217

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 41

Customising options for A9107627

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.312 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
110 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
