A9178118 Battery compartment holder

A9178118

Battery compartment holder

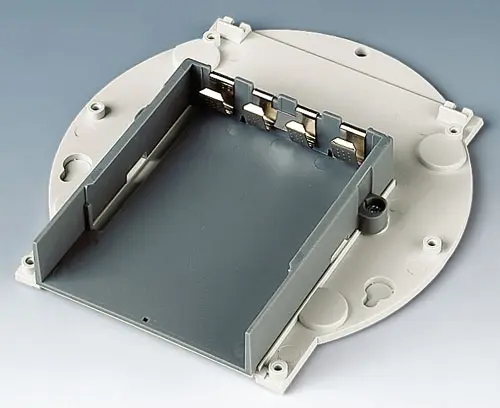

Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply

1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

  • Usato per
A9078107 DATEC-CONTROL M, Vers. I

A9078107

DATEC-CONTROL M, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet
