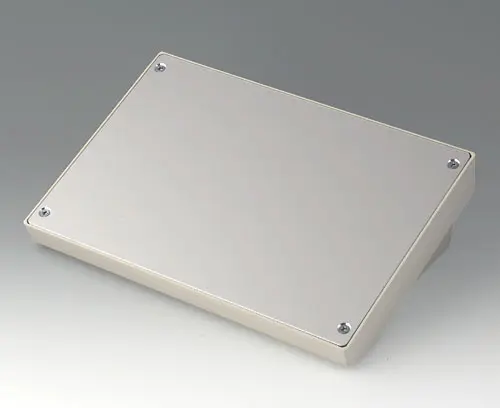

B4126106 Front panel SL

B4126106

Front panel SL

Front panel SL for mounting of all kinds of operating elements.

Supply

1 front panel, 4 screws diameter 4.0 mm

  • Usato per
  • Modifiche specifiche del cliente
B4026117 DATEC-TERMINAL SL

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Chiudi

B4026117

DATEC-TERMINAL SL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
264x180x86mm
IP 54 opt.

Customising options for B4126106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
matt anodised
Width
259,4 mm
Depth
176 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 231 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
245 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
