B7040239 ERGO-CASE XS

B7040239

ERGO-CASE XS

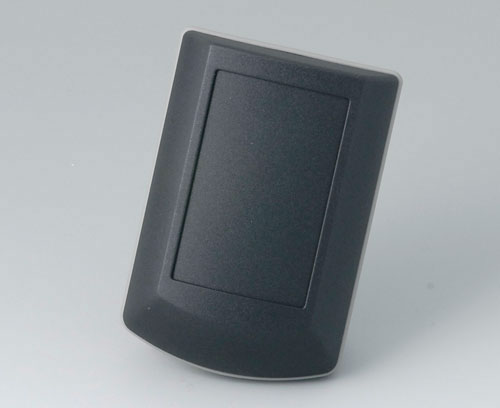

Three-part enclosure in ergonomic design. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring without eyelet hole

Supply

top and bottom part, ring, assembly kit

  • Modifiche specifiche del cliente

Customising options for B7040239

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
Protection class
Colore
Bottom and top part black RAL 9005,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
82 mm
Width
56 mm
Height
24 mm
PCB length, base
48 mm
PCB width, base
45 mm
PCB length, top
53 mm
PCB width, top
40 mm
Keypad length
52 mm
Keypad width
33,1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.539 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
