B7120048 Wall suspension elements L

B7120048

Wall suspension elements L

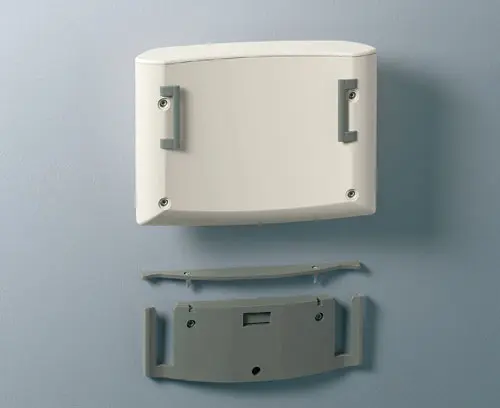

Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply

2 wall suspension element, 1 securing clip, 1 assembly kit

  • Componenti adatti

System components to complete

B7020107 ERGO-CASE L, flat

B7020107

ERGO-CASE L, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
