B4042707 Bottom part S flat, version I

B4042707

Bottom part S flat, version I

Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version

Suitable for mounting cover or aluminium front panel (sep. article)

Supply

1 bottom part flat

  • Componenti adatti
  • Modifiche specifiche del cliente

Mobile con vano batterie

Mobile senza vano batterie

Mobile con stazione di ricarica

Mobile / parete

Desk (avvitato)

Desk / parete

Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 piastra di base con listelli di fissaggio.
1 base – desk/parete –

oppure

1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base con listelli di fissaggio.
1 base – desk/parete –

System components to complete

B4042407 Cover S

B4042407

Cover S Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Chiudi

B4042407

Cover S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x14mm
B4042847 Base S - desk-top/wall -

B4042847

Base S - desk-top/wall - Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.

Supply 1 base, 2 clips, assembly kit

Chiudi

B4042847

Base S - desk-top/wall -
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
123x123x53mm
B4142106 Front panel S

B4142106

Front panel S Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4142106

Front panel S
Prodotto aggiunto alla lista
Aluminium
matt anodised
186,5x131,5x2mm
B4142257 Bottom panel with snap-in strips S

B4142257

Bottom panel with snap-in strips S Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, 2 snap-in strips, assembly kit

Chiudi

B4142257

Bottom panel with snap-in strips S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Chiudi

B4142005

Sealing S (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Chiudi

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)

Incasso

Customising options for B4042707

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni

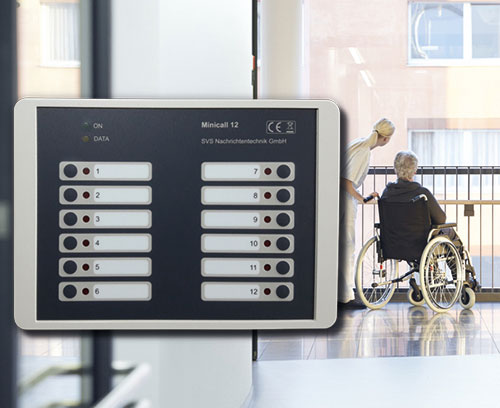

  • Esempi di applicazione
  • Purchasing Data
Protection class
IP 54 opt.
Sealings (accessories) as well as system components to complete required
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
190 mm
Depth
135 mm
Height
24,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.826 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
97 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
