B1804227 MINI-DATA-BOX SF50, high, with flanges

B1804227

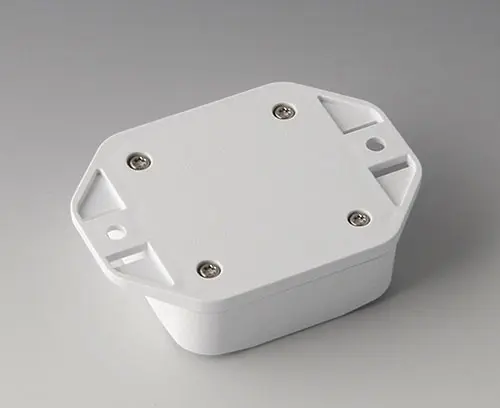

MINI-DATA-BOX SF50, high, with flanges

2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part high

Supply

Top and bottom parts, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

B1904101 Sealing S50/SF50

B1904101

Sealing S50/SF50

Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

Chiudi

B1904101

Sealing S50/SF50
Prodotto aggiunto alla lista

Customising options for B1804227

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colore
traffic white RAL 9016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
50 mm
Width
50 mm
Height
20 mm
PCB length, base
42 mm
PCB width, base
42 mm
PCB length, top
42 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 520 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
